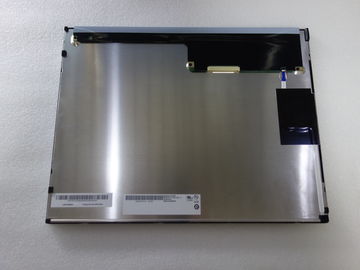

Product Details:
|
| Size: | 15 Inch | Resolution: | 1024×768 |
|---|---|---|---|
| Luminance: | 300 Cd/m² (Typ.) | Contrast Ratio: | 1500:1 (Typ.) (TM) |
| Pixel Format: | 1024(RGB)×768 [XGA] | Configuration: | RGB Vertical Stripe |
| Response Time: | 20/15 (Typ.)(Tr/Td) | Support Color: | 262K/16.2M 72% NTSC |
| Light Source: | WLED , 50K Hours , With LED Driver | Weight: | 950g (Max.) |
| Touch Panel: | Without | Power Supply: | 3.3V (Typ.) |
| High Light: | auo lcd screen,auo lcd display |
||
| Pixel Features : | Resolution | 1024(RGB)×768, XGA | Dot Pitch(mm) | 0.099×0.297 (H×V) |
|---|---|---|---|---|
| Pixel Format | RGB Vertical Stripe | Pixel Pitch(mm) | 0.297×0.297 (H×V) | |
| Mechanical Size : | Active Area(mm) | 304.128(H) × 228.096(V) | Bezel Area(mm) | 307.2(H) × 231.1(V) |
| Outline Dim.(mm) | 326.5(H) × 253.5(V) | Depth(mm) | 10.1 (Max.) | |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | - |
| Aspect Ratio | 4:3 (H:V) | Orientation | Landscape type | |
| Mounting : | Side mounting holes (4-M3) on left, right bezel | |||
| Other Spec : | Weight | 950g (Max.) | Treatment | Antiglare, Hard coating (3H) |
2.AUO G150XVN01.0 Optical Details
| Basic Information : | Luminance(cd/m²) | 300 (Typ.) | Contrast Ratio | 1500:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) | Display Mode | MVA, Normally Black, Transmissive | |
| Best View on | Symmetry | Response(ms) | 20/15 (Typ.)(Tr/Td) | |
| Color Performance : | White Coordinate | X:0.300; Y:0.325 | Display Colors | 262K/16.2M (6-bit / 6-bit + FRC) |
| Color Temperature | 7274K | White Uniformity | 1.33 (Max.)(5 points) | |
| 1931 Color Gamlt : | NTSC Ratio | 71% | sRGB | 92% coverage |
| Adobe RGB | 72% coverage | DCI-P3 | 73% coverage | |
| Rec.2020 | 53% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
