Product Details:
|
| Size: | 21.5 Inch | Screen Type: | LCM , A-Si TFT-LCD |
|---|---|---|---|
| Luminance: | 250 Cd/m² (Typ.) | Contrast Ratio: | 5000 : 1 (Typ.) (TM) |
| Viewing Angle: | 89/89/89/89 (Typ.)(CR≥10) | Response: | 10/6 (Typ.)(Tr/Td) Ms |
| Backlight: | 10S7P WLED , 30K Hours , With LED Driver | Voltage Supply: | 5.0V (Typ.) |
| Touchscreen: | Without | Use For: | Industrial |
| High Light: | auo lcd screen,auo lcd display |
||
1. General Description

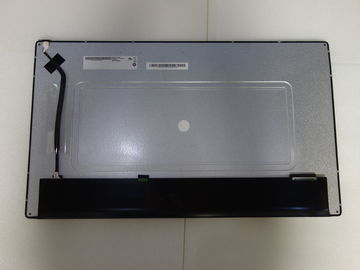

This specification applies to the 21.5 inch-wide Color TFT-LCD Module G215HVN01.0.
The display supports the Full HD - 1920(H) x 1080(V) screen format and 16.7M colors (RGB 8-bits data).
All input signals are dual channel LVDS interface.
LED driver board is included. G215HVN01.0 is designed for industrial display applications.
2.Display Characteristics
| ITEMS | Unit | SPECIFICATIONS |
| Screen Diagonal | [mm] | 546.86(21.53”) |
| Active Area | [mm] | 476.64 (H) x 268.11 (V) |
| Pixels H x V | 1920(x3) x 1080 | |
| Pixel Pitch | [um] | 248.25 (per one triad) ×248.25 |
| Pixel Arrangement | R.G.B. Vertical Stripe | |
| Display Mode | VA Mode, Normally Black | |
| White Luminance ( Center ) | [cd/m2] | 300 (Typ.) |
| Contrast Ratio | 5000 (Typ.) | |
| Optical Response Time | [msec] | 25 ms (Typ., on/off) |
| Nominal Input Voltage | [Volt] | +5.0 V |
| Backlight Input Voltage | [Volt] | +12.0 V |
| Power Consumption | [Watt] | 19.82 W (Typ. Cell 3.5 + LED 16.32) (with LED driver board, all white pattern) |
| Weight | [Grams] | 1,850 (± 185 g) |
| Physical Size | [mm] | 495.6(W) × 292.2(H) × 12.7(D) |
| Electrical Interface | Dual channel LVDS | |
| Support Color | 16.7M colors (RGB 8 bits) | |
| Surface Treatment | Anti-Glare, 3H | |
|
Temperature Range Operating Storage (Non-Operating) |
[oC] [oC] |
0 to +60 -20 to +60 |
| RoHS Compliance | RoHS Compliance | |
| TCO Compliance | TCO 5.1 Compliance |
3.Optical Characteristics
| Item | Unit | Conditions | Min. | Typ. | Max. | Note |
|
Viewing Angle |
[degree] | Horizontal (Right) CR = 10 (Left) |
75 75 |
89 89 |
- - |
1, 2 |
| [degree] |
Vertical (Upper) CR = 10 (Lower) |
75 75 |
89 89 |
- - |
||
| Contrast ratio | Normal Direction | 3000 | 5000 | - | 3 | |
|
Response Time |
[msec] |
Raising Time (TrR) | - | 20 | 25 | |
| Falling Time (TrF) | - | 5 | 10 |
4 |
||
| Raising + Falling | - | 25 | 35 | |||
|
Color / Chromaticity Coordinates (CIE) |
Red x | 0.589 | 0.639 | 0.689 |
5 |
|
| Red y | 0.283 | 0.333 | 0.383 | |||
| Green x | 0.253 | 0.303 | 0.353 | |||
| Green y | 0.573 | 0.623 | 0.673 | |||
| Blue x | 0.105 | 0.155 | 0.205 | |||
| Blue y | 0.000 | 0.048 | 0.098 | |||
| Color Coordinates (CIE) White | White x | 0.263 | 0.313 | 0.363 | ||
| White y | 0.279 | 0.329 | 0.379 | |||
| Central Luminance | [cd/m2] | 240 | 300 | - | 6 | |
| Luminance Uniformity | [%] | 75 | 80 | - | 7 | |
| Crosstalk (in 60Hz) | [%] | 1.5 | 8 | |||
| Flicker | dB | -20 | 9 |
