Product Details:
|
| Size: | 19 Inch | Resolution: | 1280×1024 |
|---|---|---|---|
| Luminance: | 300 (Typ.)(cd/m²) | Viewing Angle: | 89/89/89/89 (Typ.)(CR≥10) |
| Contrast Ratio: | 1000 : 1 (Typ.) (TM) | Color Depth: | 16.7M 72% NTSC |
| Backlight: | 9S6P WLED , 50K Hours , With LED Driver | Touchscreen: | Without |
| High Light: | auo display panel,auo lcd screen |
||
1. General Description

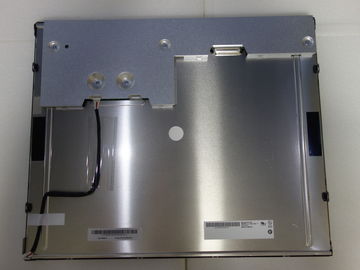

G190EAN01.0 is a Color Active Matrix Liquid Crystal Display composed of a TFT-LCD panel, a driver circuit, and a backlight system.
The screen format is intended to support the SXGA (1280(H) x 1024(V)) screen and 16.7M colors. All input signals are 2-channel LVDS interface compatible
2.Display Characteristics
| Items | Unit | Specifications |
| Screen Diagonal | [mm] | 482.6 (19.0" ) |
| Active Area | [mm] | 376.32 (H) x 301.06 (V) |
| Pixels H x V | 1280(x3) x 1024 | |
| Pixel Pitch | [mm] | 0.294 (per one triad) x 0.294 |
| Pixel Arrangement | R.G.B. Vertical Stripe | |
| Display Mode | Normally Black | |
| White Luminance | 2 [cd/m ] | 300 (center, Typ) @ 80mA |
| Contrast Ratio | 1000 : 1 (Typ) | |
| Optical ResponseTime | [msec] | 25 (Typ, on/off) |
| Nominal Input Voltage VDD | [Volt] | +5.0 V |
| Power Consumption | [Watt] | LED: 14.4 (W) + LVDS: 3.5 (W) (typ) |
| Weight | [Grams] | 1600 (TYP) |
| Physical Size (H x V x D) | [mm] | 396 (H) x 324 (V) x 17.0 (D) (Typ) |
| Electrical Interface | Dual channel LVDS | |
| Surface Treatment | Anti-Glare treatment | |
| Support Color | 16.7M colors | |
Temperature Range Operating Storage (Non-Operating) |
o [ C] o [ C] |
0 to +50 -20 to +60 |
| RoHS Compliance | RoHS Compliance |
3.Optical Characteristics
| Item | Unit | Conditions | Min. | Typ. | Max. | Note |
Viewing Angle | [degree] | Horizontal (Right) CR = 10 (Left) | 75 75 | 89 89 | | |
Vertical (Up) CR = 10 (Down) | 75 75 | 89 89 | | |||
| Luminance Uniformity | [%] | 9 Points | 75 | 80 | - | 2, 3 |
Optical Response Time | [msec] | Rising | - | 13 | 18 | 4, 6 |
| Falling | - | 12 | 17 | |||
| Rising + Falling | -- | 25 | 35 | |||
Color / Chromaticity Coordinates (CIE) | Red x Red y | 0.601 0.292 | 0.651 0.342 | 0.701 0.392 | | |
Green x Green y | 0.269 0.567 | 0.319 0.617 | 0.369 0.667 | |||
Blue x Blue y | 0.095 0.010 | 0.145 0.060 | 0.195 0.110 | |||
White x White y | 0.263 0.279 | 0.313 0.329 | 0.363 0.379 | |||
| White Luminance (At LED= 80mA) |
2 [cd/m ] | 240 | 300 | - | 4 | |
| Contrast Ratio | 700 | 1000 | - | 4 | ||
| Cross Talk (At 60Hz) | [%] | - | - | 1.5 | 5 |
