Product Details:
|
| Size: | 17 Inch | Resolution: | 1280×1024 |
|---|---|---|---|
| Brightness: | 250 Cd/m² (Typ.) | Viewing Angle: | 85/85/80/80 (Typ.)(CR≥10) |
| Contrast Ratio: | 1000:1 (Typ.) (TM) | Signal Interface: | LVDS (2 Ch, 8-bit) , 30 Pins , Connector |
| Lamp Type: | 4 Strings WLED , 30K Hours , Without Driver | Touch Screen: | PCAP, Optical Bonding |
| High Light: | auo display panel,auo lcd screen |
||
2.Display Characteristics
| Items | Unit | Specifications |
| Screen Diagonal | [inch] | 17.0 |
| Active Area | [mm] | 337.920 (H) x 270.336 (V) |
| Pixels H x V | - | 1280x3(RGB) x 1024 |
| Pixel Pitch | [mm] | 0.264 (per one triad) × 0.264 |
| Pixel Arrangement | - | R.G.B. Vertical Stripe |
| Display Mode | - | Normally White |
| White Luminance (Center) |
2 [cd/m ] |
250 (Typ.) |
| Contrast Ratio | - | 1000:1(Typ.) |
| Response Time | [msec] | 5 (Typ., on/off) |
|
LCD Power Consumption (LCD Module + Backlight unit) |
[Watt] |
9.91 (Typ.) LCD module: PDD(Typ.)=3 @Black Pattern, Fv=60Hz Backlight unit: PBLU(Typ.)=6.91 @Is=60mA |
| Weight | [Grams] | 2103 (Typ.) (LCD module:1273g + Touch module:830g) |
| Outline Dimension | [mm] | 358.5(H) X 296.5(V) X 10.3 (D) (Typ.) |
| Electrical Interface | - | Dual Channel LVDS |
| Support Color | - | 16.7M colors (RGB 6-bits + Hi-FRC data) |
| Surface Treatment | - | Anti-glare type, Hardness 3H |
|
Temperature Range (LCD Module only) Operating Storage (Non-Operating) |
[oC] |
0 to +50 -20 to +60 |
| RoHS Compliance | RoHS Compliance | |
| TCO Compliance | TCO 6.0 Compliance |

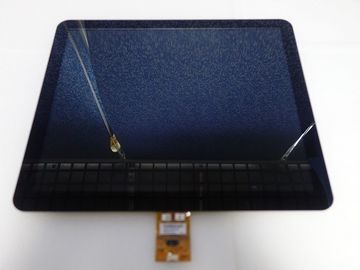

3. Touch Characteristics
| Item | Specifications | |
| Type | Projected Capacitive Touch Panel | |
| Structure | Glass / Glass | |
| Panel Size | 17 inch | |
| Total Thickness |
2.65mm ± 0.15 mm (Cover_1.8mm, sensor_0.7mm & OCR_0.15mm) |
|
| Input Mode | Multi Finger | |
|
Temperature Range (Touch Module only) |
Operating | -20℃ ~ + 70 ℃ |
| Storage | -30℃ ~ + 80 ℃ | |
|
Cover Lens |
O.D. | 379.32±0.2 * 316.74±0.2mm |
| Thickness | 1.8 mm | |
| C/L Visual Area | 339.32 x 271.4mm | |
|
Sensor Glass |
O.D. | 356.50 x 294.50mm |
| Thickness | 0.7 mm | |
| TP Active Area | 340.29 x 272.70mm | |
| Total Weight | 2103 (Typ.) (LCD module: 1273g + Touch module: 830g) | |
| Substrate Material | SDL CS Glass | |
| Chemical Strength | ≧ 400 mpa | |
| Surface Hardness | ≧7H | |
| Interface | USB 2.0 full speed | |
| Touch Resolution | Same with display resolution | |
| Single / Multi-touch Accuracy | Center:1 5mm Edge 2 mm | |
| Linearity | Center +/-1.5mm Edge:+-2mm | |
| The smallest distance between 2 points | 15mm | |
| Channel (X * Y) | 57 * 45 | |
| Report Rate (points /sec) | >100Hz | |
| Power Consumption | 400 mW type | |
| Operating System | Support windows 7, Win8 ,Linux & Android. | |
| Transmittance (%) | 85% +/- 3% | |
| AG coating | NA | |
