Product Details:
|
| Size: | 15 Inch | Luminance: | 400 Cd/m² (Typ.) |
|---|---|---|---|
| Contrast Ratio: | 800:1 (Typ.) (TM) | Viewing Angle: | 80/80/70/80 (Typ.)(CR≥10) |
| Support Color: | 262K/16.2M 63% NTSC | Light Source: | WLED , 70K Hours , With LED Driver |
| Frame Rate: | 60Hz | Touch Panel: | Without |
| High Light: | auo display panel,auo lcd screen |
||
1.General Description

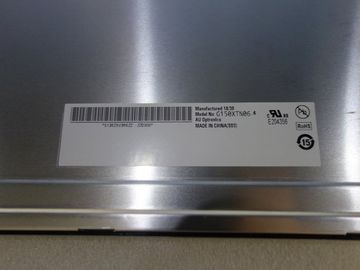

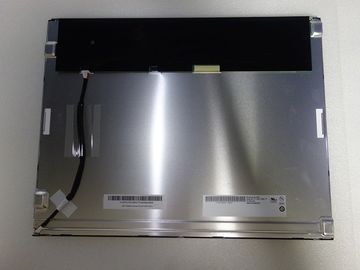

G150XTN06.0 is a Color Active Matrix Liquid Crystal Display composed of a TFT-LCD display, a driver circuit, and a backlight system.
The screen format is intended to support XGA (1024(H) x 768(V)) screen and 16.2M or 262K colors.
All input signals are LVDS interface compatible. All design rules of this module can correspond to PSWG standard.
G150XTN06.0 is designed for industrial display applications.
2.Display Characteristics
| Items | Unit | Specifications |
| Screen Diagonal | [inch] | 15 |
| Active Area | [mm] | 304.128(H) x 228.096(V) |
| Pixels H x V | 1024x3(RGB) x 768 | |
| Pixel Pitch | [mm] | 0.297 x 0.297 |
| Pixel Arrangement | R.G.B. Vertical Stripe | |
| Display Mode | TN, Normally White | |
| Nominal Input Voltage VDD | [Volt] | 3.3 typ. |
| Typical Power Consumption | [Watt] | 8.92W |
| Weight | [Grams] | 1000g (max.) |
| Physical Size | [mm] | 326.5(H)x 253.5(V) x 12.0(D) (max.) |
| Electrical Interface | LVDS | |
| Surface Treatment | Anti-glare | |
| Support Color | 16.2M/262K | |
Temperature Range Operating Storage (Non-Operating) | [℃] [℃] |
-30 to +85 -30 to +85 |
| RoHS Compliance | RoHS Compliance | |
| Light Bar Unit | LED, Replaceable |
3. Optical Characteristics
| Item | Unit | Conditions | Min. | Typ. | Max. | Note |
| White Luminance | [cd/m2] | 320 | 400 | - | 1 | |
Uniformity | % |
9 Points |
75 |
80 | |
1, 2, 3 |
| Contrast Ratio | 400 | 800 | - | 4 | ||
| Cross talk | % | - | 1.2 | 1.5 | 5 | |
Response Time | [msec] [msec] | Rising | - | 5.7 | | |
| Falling | - | 2.3 | ||||
| [msec] | Raising + Falling | - | 8 | |||
Viewing Angle | [degree] [degree] [degree] [degree] | Horizontal (Right) CR = 10 (Left) | 70 70 | 80 80 | - | |
Vertical (Upper) CR = 10 (Lower) | 60 70 | 70 80 | - | |||
Color / Chromaticity Coordinates (CIE 1931) Color Gamut | | Red x | 0.567 | 0.617 | 0.667 | |
| Red y | 0.296 | 0.346 | 0.396 | |||
| Green x | 0.286 | 0.336 | 0.386 | |||
| Green y | 0.562 | 0.612 | 0.662 | |||
| Blue x | 0.109 | 0.159 | 0.209 | |||
| Blue y | 0.015 | 0.065 | 0.115 | |||
| White x | 0.261 | 0.311 | 0.361 | |||
| White y | 0.272 | 0.322 | 0.372 | |||
| 60 | - |
