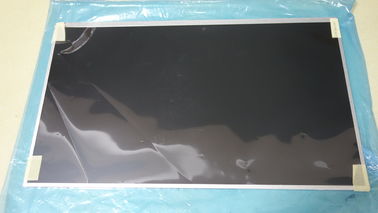

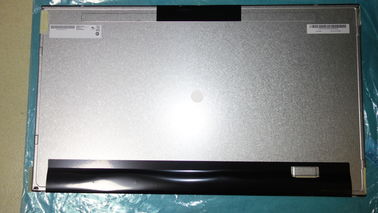

23.8 Inch LCM AUO LCD Panel 1920×1080 Resolution G238HAN01.2 Without Touchscreen

23.8 Inch LCM AUO LCD Panel 1920×1080 Resolution G238HAN01.2 Without Touchscreen

    • 23.8 Inch LCM AUO LCD Panel 1920×1080 Resolution G238HAN01.2 Without Touchscreen
    • 23.8 Inch LCM AUO LCD Panel 1920×1080 Resolution G238HAN01.2 Without Touchscreen
  • 23.8 Inch LCM AUO LCD Panel 1920×1080 Resolution G238HAN01.2 Without Touchscreen

    Product Details:

    Place of Origin: KOREA
    Brand Name: AUO
    Certification: ISO9001
    Model Number: G238HAN01.2

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Packaging Details: Antistatic bag, Bubble Bag, Foam Box and Carton Box.
    Delivery Time: 1-3 Working Days
    Contact Now
    Detailed Product Description
    Panel Brand: AUO Model Name: G238HAN01.2
    Screen Size: 23.8 Inch Screen Type: LCM , A-Si TFT-LCD
    Refresh Rate: 60Hz Touchscreen: Without

    G238HAN01.2 AUO 23.8 inch  LCM 1920×1080  LCD screen

    AUO G238HAN01.2 Mechanical Details

    Pixel Features : Resolution 1920(RGB)×1080, FHD Dot Pitch(mm) 0.0915×0.2745 (H×V)
    Pixel Format RGB Vertical Stripe Pixel Pitch(mm) 0.2745×0.2745 (H×V)
    Mechanical Size : Active Area(mm) 527.04(H) × 296.46(V) Bezel Area(mm) 530.2(H) × 299.6(V)
    Outline Dim.(mm) 543(H) × 317.4(V) Depth(mm) 8.4/11.65 (Typ./Max.)
    Outline Features : Form Style Flat Rectangle Outline Shape -
    Aspect Ratio 16:9 (H:V) Orientation Landscape type
    Mounting : Side mounting holes (4-M3) on left, right bezel
    Other Spec : Weight 2.30Kgs (Typ.) Treatment Antiglare, Hard coating (3H)



    AUO G238HAN01.2 Optical Details

    Basic Information : Luminance(cd/m²) 400 (Typ.) Contrast Ratio 1000:1 (Typ.) (Transmissive)
    Viewing Angle 89/89/89/89 (Typ.)(CR≥10)  Display Mode AHVA, Normally Black, Transmissive
    Best View on Symmetry Response(ms) 14 (Typ.)(G to G)
    Color Performance : White Coordinate X:0.313; Y:0.329 Display Colors 16.7M (6-bit + Hi-FRC)
    Color Gamut 83% NTSC (CIE1931) White Uniformity 1.25/1.33 (Typ./Max.)(9 points)



    AUO G238HAN01.2 Electronics Details

    Frame Rate : 60Hz
    Reverse Scan : No
    Power Consumption : 17.5W (Typ.)



    We also have other industrial LCD panels, pls contact to us for the further information
