DC/AC Ccfl Electronic Inverter 1500V~1700V Output Voltage 69kHz TDK CXA-0231

DC/AC Ccfl Electronic Inverter 1500V~1700V Output Voltage 69kHz TDK CXA-0231

    • DC/AC Ccfl Electronic Inverter 1500V~1700V Output Voltage 69kHz TDK CXA-0231
    • DC/AC Ccfl Electronic Inverter 1500V~1700V Output Voltage 69kHz TDK CXA-0231
  • DC/AC Ccfl Electronic Inverter 1500V~1700V Output Voltage 69kHz TDK CXA-0231

    Product Details:

    Place of Origin: Japan
    Brand Name: TDK
    Certification: ISO9001
    Model Number: CXA-0231

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Packaging Details: Antistatic bag, Bubble Bag, Foam Box and Carton Box
    Delivery Time: 1-3 Working Days
    Payment Terms: T/T, Western Union,Escrow 10(we pay hkinventory escrow fee) ,Paypal
    Supply Ability: 500PCS
    Contact Now
    Detailed Product Description
    Size: 180x25x8 (*2)mm Input Voltage: 12V
    Output Voltage: 1500V~1700V Type: DC/AC Inverters
    Output Frequency: 69kHz D/C: 18+
    Quality: New And Original Application: Electronic Component

    1.FEATURES:


    The CXA-0231 is an inverter for cold cathode fluorescent lamps and features a built-in dimmer.

    • Because they employ advanced output current control, fluctuations in input voltage, load,

      and distributed capacitance have virtually no effect on brightness

      A PWM (pulse-width modulation) circuit mounted on the CXA- 0231 enables a brightness adjustment range to be wider than that of the conventional type.

    • Output open and short circuit conditions result in no damage, heat generation, or other difficulties.

    • Safe design that includes a built-in overcurrent protection element.

    • The high-voltage terminal is coated with silicone so as to reduce a possibility of an occurrence of a defect caused by dust.



    2.Electrical Characteristics



    Item Unit Symbol Specification Condition
    min typ max Vin(V) Vrmt(V) Vbr(V) Ta(℃ ) RL(kΩ) Remark



    Output Current



    mArms

    Iout

    (Maximum dimmer)

    5.5 6.0 6.5 12±0.6 5 0 23±5 95 (*1)
    5.3 6.0 6.7 12±2.4 5 0 0 to +70 75 to 112 (*1)

    Iout

    (Minimum dimmer)

    0.6 1.5 2.4 12±0.6 5 1.3 23±5 95 (*1)
    0.4 1.5 2.6 12±2.4 5 1.3 0 to +70 75 to 112 (*1)
    Input Current A Iin1 - 0.78 1.4 12±2.4 5 0 to 1.3 0 to +70 75 to 112 Remote ON
    mA Iin2 - 1 12±1.2 0 to 0.4 0 to 1.5 0 to +70 75 to 112 Remote OFF



    Frequency

    kHz Freq1 53 60 67 12±2.4 5 0 0 to +70 75 to 112
    kHz Freq2 55 62 69 12±2.4 5 0 0 to +70 75 to 112
    Hz Freq3(Duty frequency) 225 270 335 12±2.4 5 1.3 0 to +70 75 to 112
    Open Circuit Voltage Vrms Vopen 1500 1700 - 12±2.4 5 0 0 to +70 Open load



    (*1) Please refer to the connection diagram for details of a dimming method.



    3.Other Specifications



    Dimming Function   Yes
    Operating Temperature 0 to +70
    Storage Temperature -30 to +85
    Operating Humidity Ratio RH% 95Max
    Safety Standard
    Weight g 30
    Dimensions(WxDxH) mm 180x25x8 (*2)
    Fused Input   Yes
    Remote ON / OFF   Yes
    Alarm Signal Function   No
    Shutdown Function   No

    Silicone Coating on

    High Voltage Area

      Yes



    (*2) These dimensions are indicated the maximum only H. Others are typical values.

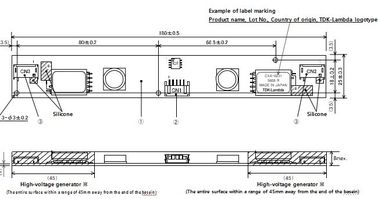

    4.Connector



    Connector

    number

    Part number Model/Material Quantity Remarks Recommended applicable connector
    Printed circuit board PCB Composite(CEM-3) 1 UL94V-0 t=1.0
    Input connector CN1 S5B-PH-SM4-TB(LF()SN) 1 JST Mfg. Co., Ltd. PHR-5
    Output connector CN2,CN3 SM02(8.0)B-BHS-1-TB(LF()SN) 2 JST Mfg. Co., Ltd. BHR-03VS-1



    DC/AC Ccfl Electronic Inverter 1500V~1700V Output Voltage 69kHz TDK CXA-0231
