Product Details:
|
| Panel Model: | COM50H5125XLC | Panel Brand: | ORTUSTECH |
|---|---|---|---|
| Descrition: | 320×240 | Panel Type: | A-Si TFT-LCD |
| Active Area: | 100.8×75.6 Mm | Outline: | 108.3×87.55×3.2 Mm |
| High Light: | industrial touch screen display,industrial lcd screen |
||

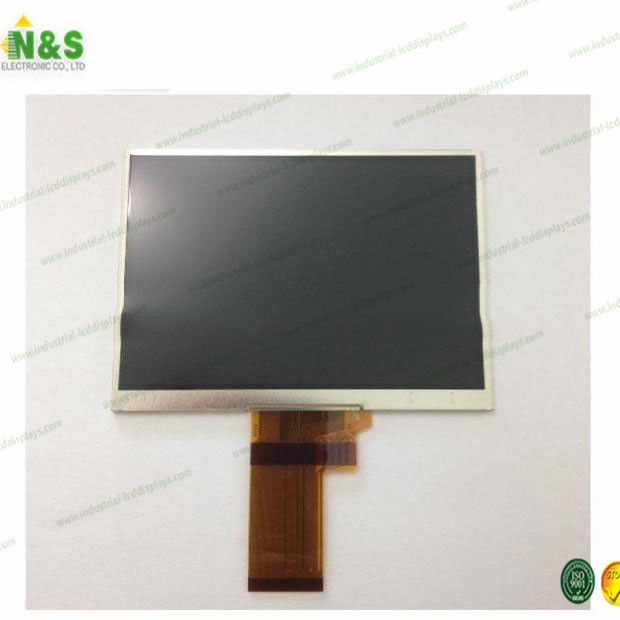

New and original COM50H5125XLC ORTUSTECH a-Si TFT-LCD ,5.0 inch, 320×240 for 60Hz
| Panel Model | COM50H5125XLC |
|---|---|
| Panel Brand | ORTUSTECH |
| Descrition | a-Si TFT-LCD ,5.0 inch, 320×240 |
| Panel Type | a-Si TFT-LCD |
| Operating Temperature | -20 ~ 70 °C |
| Storage Temperature | -30 ~ 80 °C |
| Remarks | Blanview, 2 in 1 FPC |
Packaging & Delivery
Packaging Details: Safe & Professional packing or as requirement for the LCD Screen replacements.
Delivery Detail: 2-3 days after receipt of payment
Payment terms: We accept T/T, PayPal, Western Union and others.
| Dot Resolution | 320(RGB)×240 (QVGA) |
|---|---|
| Pixel Configuration | RGB Vertical Stripe |
| Pixel Density | 80 PPI |
| Aspect Ratio | 4:3 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.105×0.315 mm (H×V) |
| Pixel Pitch | 0.315×0.315 mm (H×V) |
| Weight | 60.5g (Typ.) |
| Surface | Hard coating (3H) |
| Active Area | 100.8×75.6 mm (H×V) |
| Bezel Area | 104.10×78.90 mm (H×V) |
| Outline Dimension | 108.3×87.55 mm (H×V) |
| Outline Depth | 3.0±0.2 mm |
| Landscape or Portrait | Landscape type |
| Touch Panel | Without |
Feedback:
(1) Your early confirmation will be highly appreciated after receiving the item.
(2) We have 12 months warranty for each LCD screen panel, depend on the different LCD panel models.
(3) We will do our best to solve any possible problems for your after sale sevice. Please contact with us if any problems.
| Display Mode | TN, Normally White, Transflective |
|---|---|
| Brightness | 450 cd/m² (Typ.) |
| Contrast Ratio | 12:1 (Typ.) (Reflective) |
| Display Color | 262K/16.7M (6-bit / 6-bit + Hi-FRC) |
| Response Time | 40/60 (Max.)(Tr/Td) |
| Viewing Angle | 80/80/80/80 (Typ.)(CR≥10) (L/R/U/D) |
| White Variation | 1.43 (Max.)(9 points) |
| Sunlight Readable | Y |
Packing& Shipping:
Fast & Cheap Delivery: We have big discount from forwarder (Long Contract).
Guarantee:
(1) All items will be strictly tested and shipped with strong package.
(2) We have 3~6months warranty for every item, depend on the different item.
(3) We will do our best to solve any possible problem for your after sale. Please contact with us.
| Vertical Frequency | 60Hz |
|---|---|
| Reverse Scan | Yes (180°) |
| Time Controller (T-CON) | Embedded T-CON |
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| COM20T2811G | ORTUSTECH | 1.9" | 354×240(dot) |
| COM30T3808W | ORTUSTECH | 3.0" | 959×320(dot) |
| COM57T5M52GSC | ORTUSTECH | 5.7" | 320×240 |
| COM43H4M78ULC | ORTUSTECH | 4.3" | 480×800 |
| COM37T3M76ILX | ORTUSTECH | 3.7" | 480×800 |
| COM22H2M16XLC | ORTUSTECH | 2.2" | 240×320 |
| COM25T2855G | ORTUSTECH | 2.5" | 479×240 |
| COM35T3830XLC | ORTUSTECH | 3.5" | 320×240 |
