Product Details:
|
| Panel Model: | TD043MGEB1 | Panel Brand: | TPO |
|---|---|---|---|
| Descrition: | 800×480 | Panel Type: | LTPS TFT-LCD |
| Active Area: | 93.6×56.16 Mm | Outline: | 100.6×68.45 Mm |
| High Light: | industrial touch screen display,industrial lcd screen |
||
New and original TD043MGEB1 TPO LTPS TFT-LCD ,4.3 inch, 800×480 for Medical Imaging
| Panel Model | TD043MGEB1 |
|---|---|
| Panel Brand | TPO |
| Descrition | LTPS TFT-LCD ,4.3 inch, 800×480 |
| Panel Type | LTPS TFT-LCD |
| Operating Temperature | -10 ~ 60 °C |
| Storage Temperature | -30 ~ 70 °C |
| Remarks | 2 in 1 FPC |
N&S Delivery Details:
1) We are shipping this item to worldwide.
2) Our LCD panel orders processed within 1-3 working days of payment verification.
3) If you have not received the item on the Delivery Time. Please contact us. We will track the shipment and get back to your as soon as possible with a reply. Our goal is customer satisfaction.
5) We use the professional & safe package for our LCD screen replacements for you: Antistatic bag, Bubble Bag, Foam Box and Carton Box.
6) We will keep you updated for the Tracking NO. after we ship out the parcel to you.
7) Feel free to contact to us if there is any problems during the shipment process.
| Dot Resolution | 800(RGB)×480 (WVGA) |
|---|---|
| Pixel Configuration | RGB Vertical Stripe |
| Pixel Density | 217 PPI |
| Aspect Ratio | 15:9 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.039×0.117 mm (H×V) |
| Pixel Pitch | 0.117×0.117 mm (H×V) |
| Weight | 45g |
| Active Area | 93.6×56.16 mm (H×V) |
| Bezel Area | 96.4×58.96 mm (H×V) |
| Outline Dimension | 100.6×68.45 mm (H×V) |
| Outline Depth | 3.1 (Typ.) mm |
| Landscape or Portrait | Landscape type |
| Touch Panel | Without |
Guarantee:
(1) All items will be strictly tested and shipped with safe & professional package.
(2) We have 12 months warranty for each LCD screen panel, depend on the different LCD panel models.
(3) We will do our best to solve any possible problems for your after sale sevice. Please contact with us if any problems.
| Display Mode | Normally Black, Transmissive |
|---|---|
| Brightness | 300 cd/m² (Typ.) |
| Contrast Ratio | 400 : 1 (Typ.) (Transmissive) |
| Display Color | 16.7M (8-bit) |
| Response Time | 30/10 (Typ.)(Tr/Td) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction | Symmetry |
| White color Chromaticity | Wx:0.310; Wy:0.330 |
| Sunlight Readable | N |
Packing& Shipping:
Fast & Cheap Delivery: We have big discount from forwarder (Long Contract).
Guarantee:
(1) All items will be strictly tested and shipped with strong package.
(2) We have 3~6months warranty for every item, depend on the different item.
(3) We will do our best to solve any possible problem for your after sale. Please contact with us.
| Reverse Scan | Yes (U/D, L/R) |
|---|
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| TD035SHEC1 | TPO | 3.5" | 240×320 |
| TD035SHEC2 | TPO | 3.5" | 240×320 |
| 990000853 | TPO | 3.0" | 320×240 |
| TD018THEJ6 | TPO | 1.8" | 128×160 |
| TD028THEC1 | TPO | 2.8" | 240×320 |
| TD030MHEA1 | TPO | 3.0" | 320×240 |
| TD028SHEB2 | TPO | 2.8" | 240×320 |
| TD028SHEB1 | TPO | 2.8" | 240×320 |

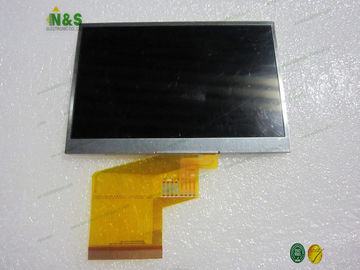

TD043MGEB1 pictures
