Product Details:
|
| Panel Model: | TD035TTEA3 | Panel Brand: | TPO |
|---|---|---|---|
| Descrition: | 320×240 | Panel Type: | LTPS TFT-LCD |
| Active Area: | 70.08×52.56 Mm | Outline: | 76.9×63.9×4.2 Mm |
| High Light: | industrial touch screen display,industrial lcd screen |
||
New and original TD035TTEA3 TPO LTPS TFT-LCD ,3.5 inch, 320×240 for Industrial Application
| Panel Model | TD035TTEA3 |
|---|---|
| Panel Brand | TPO |
| Descrition | LTPS TFT-LCD ,3.5 inch, 320×240 |
| Panel Type | LTPS TFT-LCD |
| Operating Temperature | -20 ~ 70 °C |
| Storage Temperature | -30 ~ 80 °C |
| Remarks | 3 in 1 FPC |
N&S supplies integrated LCD touch display solutions, which will make the process of your development easy. The module seals LCD, touch screen, the foundation hardware and software (driver), and universal connection (USB or RS232) to PC and embedded system.We focuses on LCD display module integrate touch screen in medium and small size between 5~12.1 inches. Touch screen technology is the most popular form in applications ranging from industry to consumer . It is more convenient compaired
| Dot Resolution | 320(RGB)×240 (QVGA) |
|---|---|
| Pixel Configuration | RGB Vertical Stripe |
| Pixel Density | 115 PPI |
| Aspect Ratio | 4:3 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.073×0.219 mm (H×V) |
| Pixel Pitch | 0.219×0.219 mm (H×V) |
| Weight | 45.12±2g |
| Active Area | 70.08×52.56 mm (H×V) |
| Bezel Area | 72.08×54.56 mm (H×V) |
| Outline Dimension | 76.9×63.9 mm (H×V) |
| Outline Depth | 4.0±0.2 mm |
| Landscape or Portrait | Landscape type |
| Touch Panel | Embeded (4-wire Resistive) |
Return and Refund:
(1) Please notify us ASAP if the LCD Displays you received is defective. Please do not raise any dispute without communication.
(2) All LCD panels must be informed before returning. Defective item must be reported and returned within our warranty period.
(3) Returned item must have original package and be in good condition if possible, pls provide us the tracking number and returning reason.
| Display Mode | TN, Normally White, Transmissive |
|---|---|
| Brightness | 290 cd/m² (Typ.) |
| Contrast Ratio | 300 : 1 (Typ.) (Transmissive) |
| Display Color | 262K (6-bit) |
| Color Gamut | 50% NTSC (CIE1931) |
| Response Time | 20 (Typ.)(Tr+Td) |
| Viewing Angle | 60/60/60/60 (Typ.)(CR≥10) (L/R/U/D) |
| White color Chromaticity | Wx:0.330; Wy:0.340 |
| White Variation | 1.25 (Typ.)(9 points) |
| Sunlight Readable | N |
Excellent service on before-sale, on-sale and after-sale
1. We provide one year warranty, will provide the after-sale service for you if any quality problems.
2.Your inquiry related to our products or prices will be replied in 24 hours.
3. We will track the shipping status time by time so that buyer can receive our goods in time and safely.
| Vertical Frequency | 70Hz |
|---|---|
| Reverse Scan | No |
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| 990001265 | TPO | 3.0" | 960×480(dot) |
| TD025THEE6 | TPO | 2.5" | 640×240 |
| 990000600 | TPO | 2.0" | 480×240 |
| LAJ084T001A | TPO | 8.4" | 800×600 |
| LAJ080W001A | TPO | 8.0" | 800×480 |
| TJ123NP01AA | TPO | 12.3" | 1280×480 |
| 990000553 | TPO | 3.5" | 320×240 |
| LTE052T-4301-1 | TPO | 5.0" | 320×234 |
We also have other industrial LCD panels, pls contact to us for the further information

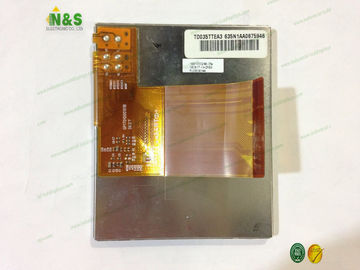

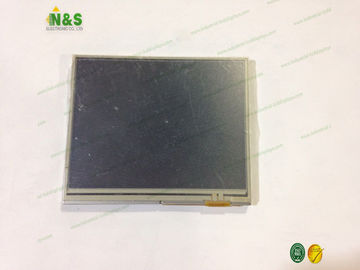

TD035TTEA3 pictures
