Product Details:
|
| Panel Model: | TD028STEB2 | Panel Brand: | TPO |
|---|---|---|---|
| Descrition: | 240×320 | Panel Type: | LTPS TFT-LCD |
| Active Area: | 43.2×57.6 Mm | Outline: | 52.9×71.7 Mm |
| High Light: | industrial touch screen display,industrial lcd screen |
||
TD028STEB2 TPO LTPS TFT-LCD ,2.8 inch, 240×320 for Industrial Application
| Panel Model | TD028STEB2 |
|---|---|
| Panel Brand | TPO |
| Descrition | LTPS TFT-LCD ,2.8 inch, 240×320 |
| Panel Type | LTPS TFT-LCD |
| Operating Temperature | -20 ~ 60 °C |
| Storage Temperature | -30 ~ 70 °C |
| Remarks | 3 in 1 FPC |
Packaging & Delivery
Packaging Details:
Safey package
Plastic trays inside
2 layes of cartons
Fragile sign on top
Can be customize 3.5 inch spare parts auo used lcd panel
Delivery Detail: 1-3 Working Days
| Dot Resolution | 240(RGB)×320 (QVGA) |
|---|---|
| Pixel Configuration | RGB Vertical Stripe |
| Pixel Density | 141 PPI |
| Aspect Ratio | 3:4 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.060×0.180 mm (H×V) |
| Pixel Pitch | 0.180×0.180 mm (H×V) |
| Weight | 35g (Max.) |
| Active Area | 43.2×57.6 mm (H×V) |
| Outline Dimension | 52.9×71.7 mm (H×V) |
| Outline Depth | 4.2 (Typ.) mm |
| Landscape or Portrait | Portrait type |
| Touch Panel | Embeded (4-wire Resistive) |
Guarantee:
(1) All items will be strictly tested and shipped with safe & professional package.
(2) We have 2~6months warranty for every LCD screen panels, depend on the different LCD panel models.
(3) We will do our best to solve any possible problem for your after sale. Please contact to us.
Return and Refund:
| Display Mode | TN, Normally White, Transflective |
|---|---|
| Brightness | 150 cd/m² (Typ.) |
| Contrast Ratio | 10:1 (Typ.) (Reflective) |
| Display Color | 262K (6-bit) |
| Color Gamut | 45% NTSC (CIE1931) |
| Response Time | 35 (Typ.)(Tr+Td) |
| Viewing Angle | 40/45/60/35 (Typ.)(CR≥10) (L/R/U/D) |
| White color Chromaticity | Wx:0.295; Wy:0.323 |
| White Variation | 1.25/1.33 (Typ./Max.)(9 points) |
| Reflectance Ratio | 5/10% (Min./Typ.) |
| Sunlight Readable | Y |
Excellent service on before-sale, on-sale and after-sale
1. We provide one year warranty, will provide the after-sale service for you if any quality problems.
2.Your inquiry related to our products or prices will be replied in 24 hours.
3. We will track the shipping status time by time so that buyer can receive our goods in time and safely.
| Reverse Scan | No |
|---|---|
| Total Power Consumption | 311mW (Typ.) |
Below are our other LCD panels stock for your easy reference:
| TF022TUYC8 | TPO | 2.2" | 240×320 |
| TF020TUVB2 | TPO | 2.0" | 176×220 |
| TE025THZB4 | TPO | 2.5" | 640×240 |
| AP030NUWC01 | TPO | 3.0" | 960×480(dot) |
| TF020TUYB1 | TPO | 2.0" | 176×220 |
| TF018TUYR1 | TPO | 1.8" | 128×160 |
| TF018TUYG1 | TPO | 1.8" | 128×160 |
| T026TVE001 | TPO | 2.6" | 240×320 |
We also have other industrial LCD panels, pls contact to us for the further information

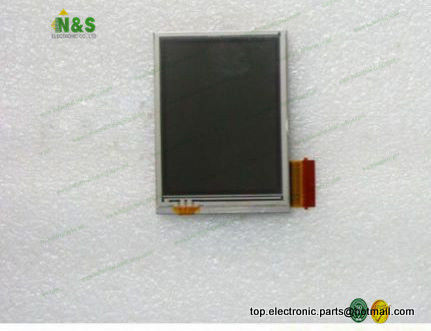

TD028STEB2 pictures
