Medical Imaging Digital LCD Display AUO 10.4 Inch RGB Vertical Stripe Pixel

Medical Imaging Digital LCD Display AUO 10.4 Inch RGB Vertical Stripe Pixel

Medical Imaging Digital LCD Display AUO 10.4 Inch RGB Vertical Stripe Pixel

Product Details:

Place of Origin: Japan
Brand Name: AUO
Certification: ISO9001
Model Number: G104STN01.0

Payment & Shipping Terms:

Minimum Order Quantity: 1
Packaging Details: Antistatic bag, Bubble Bag, Foam Box and Carton Box.
Delivery Time: 1-3 Working Days
Contact Now
Detailed Product Description
Panel Model: G104STN01.0 Panel Brand: AUO
Descrition: 800×600 Panel Type: A-Si TFT-LCD
Active Area: 211.2×158.4 Mm Outline: 243×184×7 Mm

New and original G104STN01.0 AUO a-Si TFT-LCD ,10.4 inch, 800×600 for Medical Imaging


G104STN01.0 Basic Information

Panel ModelG104STN01.0
Panel BrandAUO
Descritiona-Si TFT-LCD ,10.4 inch, 800×600
Panel Typea-Si TFT-LCD
Operating Temperature-30 ~ 80 °C
Storage Temperature-30 ~ 80 °C


Packaging & Delivery
Packaging Details: Safe & Professional packing or as requirement for the LCD Screen replacements.
Delivery Detail: 2-3 days after receipt of payment
Payment terms: We accept T/T, PayPal, Western Union and others.


G104STN01.0 Mechanical Features

Dot Resolution800(RGB)×600 (SVGA)
Pixel ConfigurationRGB Vertical Stripe
Pixel Density96 PPI
Aspect Ratio4:3 (H:V)
Form FactorFlat Rectangle Display
Dot Pitch0.088×0.264 mm (H×V)
Pixel Pitch0.264×0.264 mm (H×V)
Weight365g (Typ.)
SurfaceAntiglare, Hard coating (3H)
Active Area211.2×158.4 mm (H×V)
Bezel Area214.8×162.7 mm (H×V)
Outline Dimension243×184 mm (H×V)
Outline Depth6.5±0.5 mm
Holes & BracketsFace mounting holes (2-Φ3.5, 2-R1.75) on left, right bezel
Landscape or PortraitLandscape type
Touch PanelWithout



Our service
1. Agent Brand:
* Our sourcing line contained but not limited to Samsung, LG, Sharp, AUO, Tianma, Chimei, Hannstar, Innolux, BOE and more bands tft lcd moulds from 2010, you can get the most competitive price for real products;
2. Quality to be guaranteed:
* All the panels are 100% original and brand new, no fake panels exists.Take the lcd screen from us, you can enjoy the real panels directly from original factory;
* Original package and Seal for batch orders, all the products are in original package from original factory directly, and all the LCD panels packages have labels and serial number, you can check them;
3Quickly delivery:
* We also have international logistic center in Hongkong to support your batch orders to be delivered from Hongkong directly.
4long-term partner:
* Products are sold to more than 20 countries.
5Super After-Sale service:
* One year warranty .
6. The best TFT LCD solution:
*more tft lcd model detail information for the LCD screens including size, resolution, brightness, operating temperature or life time etc in our web site.
To get the latest prices, pls feel free to contact us.

G104STN01.0 Optical Features

Display ModeTN, Normally White, Transmissive
Brightness400 cd/m² (Typ.)
Contrast Ratio700 : 1 (Typ.) (Transmissive)
Display Color262K/16.2M (6-bit / 6-bit + FRC)
Color Gamut50% NTSC (CIE1931)
Response Time10/5 (Typ.)(Tr/Td)
Viewing Angle80/80/60/70 (Typ.)(CR≥10) (L/R/U/D)
White color ChromaticityWx:0.310; Wy:0.330
White Variation1.33 (Max.)(5 points)
Sunlight ReadableN



Why Choose US:
1. Prompt reply within 12 hours.
2. Understand inquiry in any language.
3. Products with top quality.
4. Very competitive prices.
5. 6-year experience in industrial LCD Screen replacements.
6. Distributor of famous brands Panel: Samsung, LG, Sharp, AUO, TPO, Tianma, Mitsubishi and more.
7. Fabulous after-sale service.

G104STN01.0 Electronics Feature

Vertical Frequency60Hz
Reverse ScanYes (180°)
Total Power Consumption2.88W (Typ.)


Below are our other LCD panels stock for your easy reference:

Panel ModelBrandSizeResolution
H246QN01 V1AUO2.5"320×240
H241QN01 V5AUO2.4"240×320
H220HN00 V1AUO2.2"176×220
H365QVN01.0AUO3.7"320×480
T550HVN03.3 CELLAUO55"1920×1080
H220QN06 V1AUO2.2"320×240
T650HVN05.8 CELLAUO65"1920×1080
T645HW02 V2 CELLAUO65"1920×1080


We also have other industrial LCD panels, pls contact to us for the further information

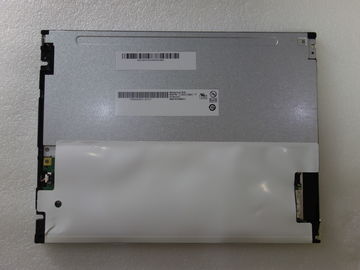

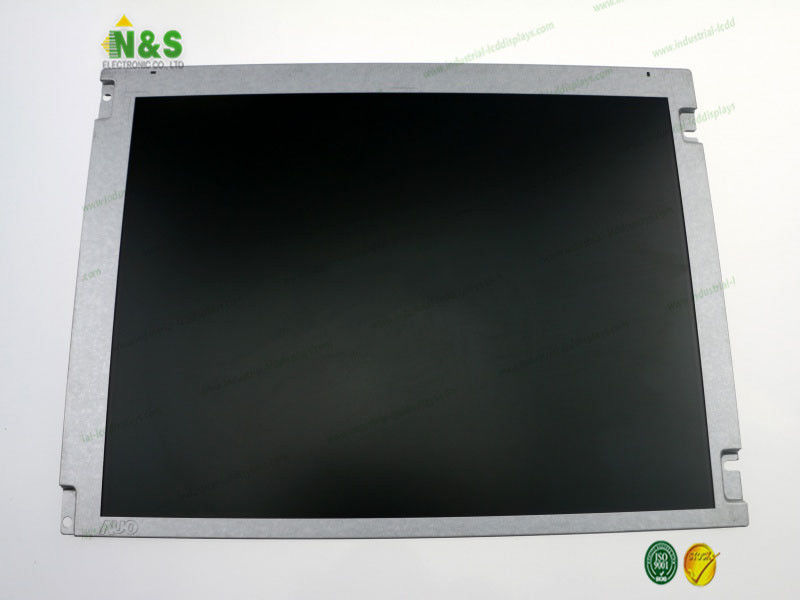

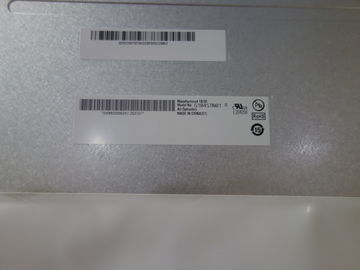

G104STN01.0   pictures  Medical Imaging Digital LCD Display AUO 10.4 Inch RGB Vertical Stripe Pixel
