Product Details:
|
| Panel Model: | G057VTN01.0 | Panel Brand: | AUO |
|---|---|---|---|
| Descrition: | 640×480 | Panel Type: | A-Si TFT-LCD |
| Active Area: | 115.2×86.4 Mm | Outline: | 144×104.6×12.8 Mm |
| High Light: | auo lcd screen,auo lcd display |
||

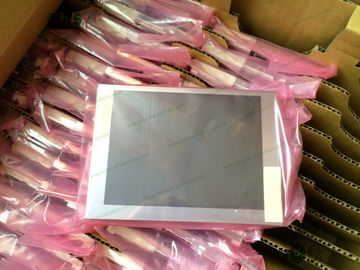

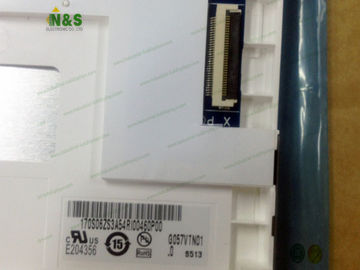

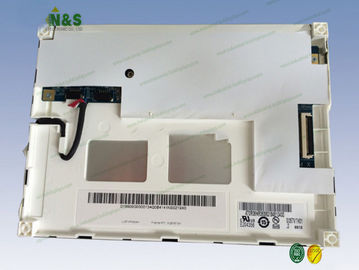

G057VTN01.0 AUO a-Si TFT-LCD ,5.7 inch, 640×480 for Industrial Application
| Panel Model | G057VTN01.0 |
|---|---|
| Panel Brand | AUO |
| Descrition | a-Si TFT-LCD ,5.7 inch, 640×480 |
| Panel Type | a-Si TFT-LCD |
| Model Alias | G057VTN01 V0 |
| Operating Temperature | -30 ~ 85 °C |
| Storage Temperature | -30 ~ 85 °C |
| Vibration Resistance | 6.8G (66.64 m/s²) |
| Remarks | Highly Vibration Reliability! |
Packaging & Delivery
Packaging Details:
Antistatic bag + Bubble bag + Foam box + Carton box
Delivery Detail:
1-3 working days after payment confirmed
| Dot Resolution | 640(RGB)×480 (VGA) |
|---|---|
| Pixel Configuration | RGB Vertical Stripe |
| Pixel Density | 141 PPI |
| Aspect Ratio | 4:3 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.060×0.180 mm (H×V) |
| Pixel Pitch | 0.180×0.180 mm (H×V) |
| Weight | 150/165g (Typ./Max.) |
| Surface | Antiglare, Hard coating (3H) |
| Active Area | 115.2×86.4 mm (H×V) |
| Bezel Area | 118.2×89.4 mm (H×V) |
| Outline Dimension | 144×104.6 mm (H×V) |
| Outline Depth | 12.3/12.8 (Typ./Max.) mm |
| Holes & Brackets | Rear mounting Pole (4-Ф2.6) |
| Landscape or Portrait | Landscape type |
| Touch Panel | Without |
Why do you choose us?
• Quick response to clients' enquiries within 24hrs.
• More than 6-year experience in LCD screen field and professional team communication team.
•Value quality and long-term cooperation to reach win-win relationship.
| Display Mode | TN, Normally White, Transmissive |
|---|---|
| Brightness | 530 cd/m² (Typ.) |
| Contrast Ratio | 800 : 1 (Typ.) (Transmissive) |
| Display Color | 262K (6-bit) |
| Color Gamut | 50% NTSC (CIE1931) |
| Response Time | 15/10 (Typ.)(Tr/Td) |
| Viewing Angle | 80/80/70/70 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction | 12 o'clock |
| White color Chromaticity | Wx:0.313; Wy:0.329 |
| White Variation | 1.30 (Max.)(5 points) |
| Sunlight Readable | N |
Why Choose US:
1. Prompt reply within 12 hours.
2. Understand inquiry in any language.
3. Products with top quality.
4. Very competitive prices.
5. 6-year experience in industrial LCD Screen replacements.
6. Distributor of famous brands Panel: Samsung, LG, Sharp, AUO, TPO, Tianma, Mitsubishi and more.
7. Fabulous after-sale service.
| Vertical Frequency | 60Hz |
|---|---|
| Reverse Scan | Yes (U/D, L/R) |
| Total Power Consumption | 3.62W (Typ.) |
