Product Details:
|
| Panel Model: | G170ETN02.0 | Panel Brand: | AUO |
|---|---|---|---|
| Descrition: | 1280×1024 | Panel Type: | A-Si TFT-LCD |
| Active Area: | 337.92×270.336 Mm | Outline: | 358.5×296.5 Mm |
| High Light: | auo display panel,auo lcd display |
||
G170ETN02.0 AUO a-Si TFT-LCD ,17.0 inch, 1280×1024 for Medical Imaging
| Panel Model | G170ETN02.0 |
|---|---|
| Panel Brand | AUO |
| Descrition | a-Si TFT-LCD ,17.0 inch, 1280×1024 |
| Panel Type | a-Si TFT-LCD |
| Operating Temperature | -30 ~ 85 °C |
| Storage Temperature | -30 ~ 85 °C |
Shipment for the LCD Display Panels:
1. Safe & Professional package for our LCD panels.
2. We can ship to you by UPS/FEDEX/DHL/TNT and so on. Other shipping terms can also be arranged according to specific requirements.
3. We are not responsible for any accidents, delays or other issues that are the responsibility of the shipping service.
4. All our LCD panel will be tested pcs by pcs before been shipped out.
| Dot Resolution | 1280(RGB)×1024 (SXGA) |
|---|---|
| Pixel Configuration | RGB Vertical Stripe |
| Pixel Density | 96 PPI |
| Aspect Ratio | 5:4 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.088×0.264 mm (H×V) |
| Pixel Pitch | 0.264×0.264 mm (H×V) |
| Weight | 1.59Kgs (Max.) |
| Surface | Antiglare, Hard coating (3H) |
| Active Area | 337.92×270.336 mm (H×V) |
| Bezel Area | 341.6×274.0 mm (H×V) |
| Outline Dimension | 358.5×296.5 mm (H×V) |
| Outline Depth | 12.45 (Typ.) mm |
| Holes & Brackets | Side mounting holes (4-M3) on left, right bezel |
| Landscape or Portrait | Landscape type |
| Touch Panel | Without |
Payment:
(1) Bank transfer , Western Union , T/T, Paypal are accepted.
(2) If any problem of payment, you can contact with us.
Shipment:
| Display Mode | TN, Normally White, Transmissive |
|---|---|
| Brightness | 400 cd/m² (Typ.) |
| Contrast Ratio | 800 : 1 (Typ.) (Transmissive) |
| Display Color | 16.7M (8-bit) |
| Color Gamut | 90% NTSC (CIE1931) |
| Response Time | TBD |
| Viewing Angle | 80/80/60/70 (Typ.)(CR≥10) (L/R/U/D) |
| White Variation | 1.25/1.33 (Typ./Max.)(9 points) |
| Sunlight Readable | N |
Why do you choose us?
• Quick response to clients' enquiries within 24hrs.
• More than 6-year experience in LCD screen field and professional team communication team.
•Value quality and long-term cooperation to reach win-win relationship.
| Vertical Frequency | 60Hz |
|---|---|
| Reverse Scan | No |
| Total Power Consumption | 18.4W (Typ.) |
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| A090XE02 V3 | AUO | 9.0" | 1024×768 |
| A060SE02 VC | AUO | 6.0" | 800×600 |
| A060SE02 V9 | AUO | 6.0" | 800×600 |
| A021AE01 V0 | AUO | 2.1" | |
| A029AE01 V1 | AUO | 2.9" | 230×90 |
| A020AE01 V1 | AUO | 2.0" | 172×72 |
| A060SE02 V7 | AUO | 6.0" | 800×600 |
| A060SE02 V6 | AUO | 6.0" | 800×600 |
We also have other industrial LCD panels, pls contact to us for the further information

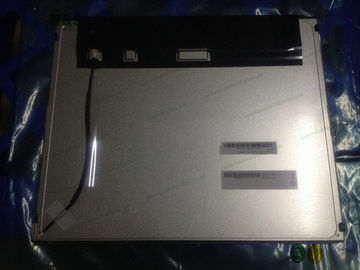

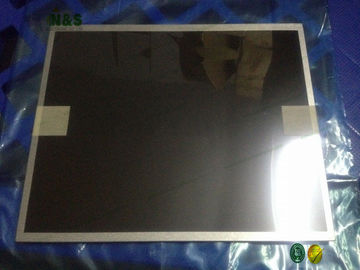

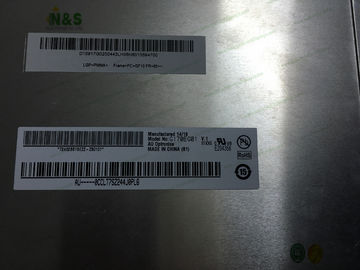

G170ETN02.0 pictures
