Product Details:
|
| Manufacturer: | AUO | Screen Size: | 19.0 Inch |
|---|---|---|---|
| Good View At: | Symmetry | Color Depth: | 16.7M |
| Refresh Rate: | 60Hz | Screen Type: | LCM , A-Si TFT-LCD |
| High Light: | auo display panel,auo lcd screen |
||

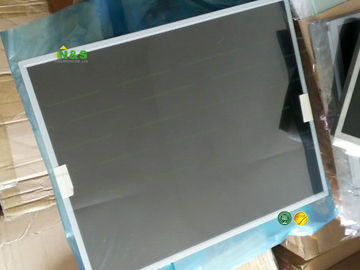

New and original G190EG02 V104 AUO 19 inch LCM 1280×1024 for Industrial Application
| Pixel Features : | Resolution | 1280(RGB)×1024, SXGA | Dot Pitch(mm) | 0.098×0.294 (H×V) |
|---|---|---|---|---|
| Pixel Format | RGB Vertical Stripe | Pixel Pitch(mm) | 0.294×0.294 (H×V) | |
| Mechanical Size : | Active Area(mm) | 376.32(H) × 301.056(V) | Bezel Area(mm) | 380.32(H) × 305.06(V) |
| Outline Dim.(mm) | 396(H) × 324(V) | Depth(mm) | 15.8 (Max.) | |
| Outline Features : | Form Style | Flat Rectangle Display | Outline Shape | - |
| Aspect Ratio | 5:4 (H:V) | Orientation | Landscape type | |
| Mounting : | Side mounting holes (4-M3) on left, right bezel | |||
| Other Spec : | Weight | 1.74Kgs (Typ.) | Treatment | Antiglare |
| Basic Information : | Luminance(cd/m²) | 350 (Typ.) | Contrast Ratio | 2000:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) | Display Mode | MVA, Normally Black, Transmissive | |
| Best View on | Symmetry | Response(ms) | 15/5 (Typ.)(Tr/Td) | |
| Color Performance : | White Coordinate | X:0.313; Y:0.329 | Display Colors | 16.7M (8-bit) |
| Color Gamut | 70% NTSC (CIE1931) | White Uniformity | 1.25/1.33 (Typ./Max.)(9 points) |
| Package Box : | Quantity | Weight | Box Size |
|---|---|---|---|
| 8 pcs / box | 17.0 Kgs | 489×293×420 mm (L×W×H) |
Our advantages in the LCD Screen market:
1.Better price
2.Fast delivery
3.Top quality
4.First class after - sales service
5.No memory effect
6.Sourcing lines & Distributors for the EOL LCD.
Excellent service on before-sale, on-sale and after-sale
1. We provide one year warranty, will provide the after-sale service for you if any quality problems.
2.Your inquiry related to our products or prices will be replied in 24 hours.
3. We will track the shipping status time by time so that buyer can receive our goods in time and safely.
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| T500QVN03.0 CELL | AUO | 50" | 3840×2160 |
| H497DAN02.1 | AUO | 5.0" | 1080×1920 |
| H546DAN07.3 | AUO | 5.5" | 1080×1920 |
| M270HVN02.3 CELL | AUO | 27.0" | 1920×1080 |
| M270HVN02.2 CELL | AUO | 27.0" | 1920×1080 |
| M270HVN02.1 CELL | AUO | 27.0" | 1920×1080 |
We also have other industrial LCD panels, pls contact to us for the further information
