Product Details:
|
| Panel Model: | G101EVN03.0 | Panel Size: | 10.1 Inch |
|---|---|---|---|
| Good View At: | Symmetry | Mass: | 350g (Max.) |
| Refresh Rate: | 60Hz | Voltage Supply: | 3.3V (Typ.) |
| Contrast Ratio: | 1300 : 1 | Touchscreen: | Without |
| High Light: | auo lcd screen,auo lcd display |
||

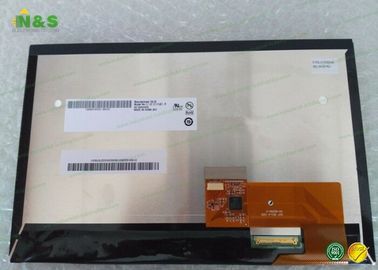

G101EVN03.0 AUO 10.1 inch LCM 1280×800 for Industrial Application
G101EVN03.0 Basic Information
| Basic Information : | Luminance | 1000 cd/m² (Typ.) | Contrast Ratio | 1300 : 1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Good View at | Symmetry | Response Speed | 25 (Typ.)(Tr+Td) (ms) | |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) = | Operating Mode | MVA, Normally Black, Transmissive | |
| Color Performance : | Chromaticity | Wx:0.313; Wy:0.329 | Support Color | 262K/16.7M (6-bit / 6-bit + FRC) |
| Gamut | 45% NTSC (CIE1931) | White Variation | 1.43 (Max.)(5 points) |
| Pixel Features : | Number of Pixel | 1280(RGB)×800 [WXGA] | Arrangement | RGB Vertical Stripe |
|---|---|---|---|---|
| Dot Pitch(W×H) | 0.0565×0.1695 mm | Pixel Pitch(W×H) | 0.1695×0.1695 mm | |
| Physical Size : | Active Viewing | 216.96(W)×135.6(H) mm | Overall Dim. | 227.69(W)×148.31(H) mm |
| Bezel Opening | - | Overall Depth | 7.75 (Typ.) mm | |
| Outline Features : | Form Shape | Flat Rectangle Display | Orientation | Landscape type |
| Aspect Ratio(W:H) | 16:10 | Shape Style | - | |
| Fixation : | Without | |||
| Other Detail : | Mass | 350g (Max.) | Surface | Glare (Haze 0%) |
5. Sourcing line for different hard disks for different brands.
Our Service
1. Small quantity also can be provided.
2. New models can be updated fast.
3. We have strict QC team to make sure all products are qualified before delivery.
4. Warranty promise
Packaging & Delivery
Packaging Details: Safe & Professional packing or as requirement for the LCD Screen replacements.
Delivery Detail: 2-3 days after receipt of payment
Payment terms: We accept T/T, PayPal, Western Union and others.
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| T500QVN03.3 CELL | AUO | 50" | 3840×2160 |
| T500QVN03.0 CELL | AUO | 50" | 3840×2160 |
| H497DAN02.1 | AUO | 5.0" | 1080×1920 |
| H546DAN07.3 | AUO | 5.5" | 1080×1920 |
| M270HVN02.3 CELL | AUO | 27.0" | 1920×1080 |
| M270HVN02.2 CELL | AUO | 27.0" | 1920×1080 |
| M270HVN02.1 CELL | AUO | 27.0" | 1920×1080 |
