Product Details:
|
| Product Number: | G070VTN02.0 | Brand: | AUO |
|---|---|---|---|
| Diagonal Size: | 7.0 Inch | Type: | A-Si TFT-LCD, LCM |
| Configuration: | RGB Vertical Stripe | Contrast Ratio: | 600:1 |
| Operating Mode: | TN, Normally White | Touch Panel: | Without |
| High Light: | auo display panel,auo lcd display |
||

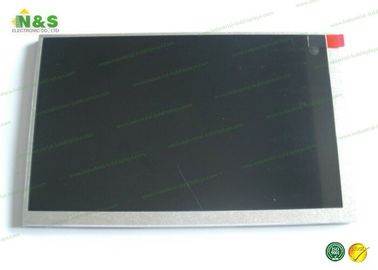

AUO G070VTN02.0 AUO 7 inch LCM 800×480 1500 for Industial Applicaiton
| Panel Model | G070VTN02.0 |
|---|---|
| Panel Brand | AUO |
| Descrition | a-Si TFT-LCD ,7.0 inch, 800×480 |
| Panel Type | a-Si TFT-LCD |
| Display Mode | TN, Normally White, Transmissive |
| Active Area | 152.4×91.44 mm |
| Outline | 169×103.51×6.52 mm |
| Surface | Antiglare, Hard coating (3H) |
| Contrast Ratio | 600:1 (Typ.) |
| Display Colors | 262K (6-bit) , CIE1931 66% |
| Response Time | 12/18 (Typ.)(Tr/Td) |
| Viewing Angle | 65/65/50/60 (Typ.)(CR≥10) (L/R/U/D) |
| Frequency | 60Hz |
| Lamp Type | 8S2P WLED Without Driver |
| Signal Interface | Parallel RGB (1 ch, 6-bit) , 50 pins |
| Input Voltage | 3.3/11.0/20.0/-10.0V (Typ.)(VDD/AVDD/VGH/VGL) |
| Panel Model | G070VTN02.0 |
|---|---|
| Panel Brand | AUO |
| Descrition | a-Si TFT-LCD ,7.0 inch, 800×480 |
| Panel Type | a-Si TFT-LCD |
| Operating Temperature | -30 ~ 70 °C |
| Storage Temperature | -40 ~ 95 °C |
| Vibration Resistance | 2.9G (28.4 m/s²) |
| Display Mode | TN, Normally White, Transmissive |
|---|---|
| Brightness | 1500 cd/m² (Typ.) |
| Contrast Ratio | 600 : 1 (Typ.) (Transmissive) |
| Display Color | 262K (6-bit) |
| Color Gamut | 66% NTSC (CIE1931) |
| Response Time | 12/18 (Typ.)(Tr/Td) |
| Viewing Angle | 65/65/50/60 (Typ.)(CR≥10) (L/R/U/D) |
| White color Chromaticity | Wx:0.306; Wy:0.328 |
| White Variation | 1.33/1.43 (Typ./Max.)(9 points) |
| Sunlight Readable | Y |
