Product Details:
|
| Panel Model: | LM340UW1-SSA1 | Panel Brand: | LG Display |
|---|---|---|---|
| Descrition: | 3440×1440 | Panel Type: | A-Si TFT-LCD |
| Active Area: | 799.8×334.8 Mm | Outline: | 820.8×361×19.8 Mm |
| High Light: | industrial touch screen display,industrial lcd screen |
||
LM340UW1-SSA1 LG Display a-Si TFT-LCD ,34 inch, 3440×1440 for 60Hz
| Panel Model | LM340UW1-SSA1 |
|---|---|
| Panel Brand | LG Display |
| Descrition | a-Si TFT-LCD ,34 inch, 3440×1440 |
| Panel Type | a-Si TFT-LCD |
| Model Alias | LM340UW1 (SS)(A1) |
| Operating Temperature | 0 ~ 50 °C |
| Storage Temperature | -20 ~ 60 °C |
| Remarks | Borderless, for LG monitor 34UM95 |
Packing & Delivery for our LCD Screen Panel Replacements:
| Dot Resolution | 3440(RGB)×1440 |
|---|---|
| Pixel Configuration | RGB Vertical Stripe |
| Pixel Density | 109 PPI |
| Aspect Ratio | 21:9 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.0775×0.2535 mm (H×V) |
| Pixel Pitch | 0.2325×0.2325 mm (H×V) |
| Weight | 3.71/3.90Kgs (Typ./Max.) |
| Surface | Antiglare, Hard coating (3H) |
| Active Area | 799.8×334.8 mm (H×V) |
| Outline Dimension | 820.8×361 mm (H×V) |
| Outline Depth | 11.8/19.8 (Typ./Max.) mm |
| Holes & Brackets | Rear mounting poles (13-M3) |
| Landscape or Portrait | Landscape type |
| Touch Panel | Without |
Guarantee:
(1) All items will be strictly tested and shipped with safe & professional package.
(2) We have 2~6months warranty for every LCD screen panels, depend on the different LCD panel models.
(3) We will do our best to solve any possible problem for your after sale. Please contact to us.
| Display Mode | AH-IPS, Normally Black, Transmissive |
|---|---|
| Brightness | 320 cd/m² (Typ.) |
| Contrast Ratio | 1000 : 1 (Typ.) (Transmissive) |
| Display Color | 1.07B (8-bit + Hi-FRC) |
| Color Gamut | 100% sRGB |
| Response Time | 14 (Typ.)(G to G) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction | Symmetry |
| White color Chromaticity | Wx:0.313; Wy:0.329 |
| White Variation | 1.33 (Max.)(9 points) |
| Sunlight Readable | N |
Why Choose US:
1. Prompt reply within 12 hours.
2. Understand inquiry in any language.
3. Products with top quality.
4. Very competitive prices.
5. 6-year experience in industrial LCD Screen replacements.
6. Distributor of famous brands Panel: Samsung, LG, Sharp, AUO, TPO, Tianma, Mitsubishi and more.
7. Fabulous after-sale service.
| Vertical Frequency | 60Hz |
|---|---|
| Reverse Scan | No |
| Total Power Consumption | 43.1W (Typ.) |
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| LC490EGY-SHM3 | LG Display | 49" | 3840×2160 |
| LH550WF3-SH01 | LG Display | 5.5" | 1080×1920 |
| LC320DXY-SHA3 | LG Display | 31.5" | 1366×768 |
| LC490EQL-SHA2 | LG Display | 49" | 3840×2160 |
| LC430EQL-SHA2 | LG Display | 43" | 3840×2160 |
| LC430DUY-SHA2 | LG Display | 43" | 1920×1080 |
| LC550EGY-SHM2 | LG Display | 55" | 3840×2160 |
| LC320DXJ-SFA9 | LG Display | 31.5" | 1366×768 |
We also have other industrial LCD panels, pls contact to us for the further information

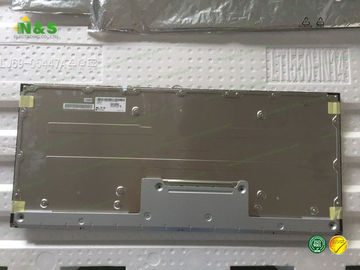

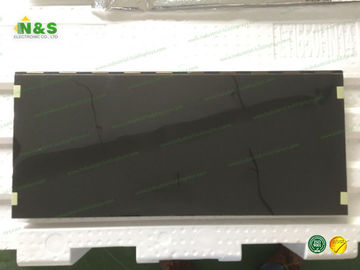

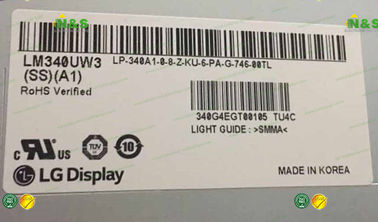

LM340UW1-SSA1 pictures
