Product Details:
|
| Panel Model: | LB190E02-SL02 | Panel Brand: | LG Display |
|---|---|---|---|
| Descrition: | 1280×1024 | Panel Type: | A-Si TFT-LCD |
| Active Area: | 376.32×301.06 Mm | Outline: | 396×324×12.8 Mm |
| High Light: | auo lcd screen,auo lcd display |
||
LB190E02-SL02 LG Display a-Si TFT-LCD ,19.0 inch, 1280×1024 for 60Hz
| Panel Model | LB190E02-SL02 |
|---|---|
| Panel Brand | LG Display |
| Descrition | a-Si TFT-LCD ,19.0 inch, 1280×1024 |
| Panel Type | a-Si TFT-LCD |
| Model Alias | LB190E02 (SL)(02) |
| Operating Temperature | -10 ~ 70 °C |
| Storage Temperature | -20 ~ 80 °C |
Shipment for the LCD Display Panels:
1. Safe & Professional package for our LCD panels.
2. We can ship to you by UPS/FEDEX/DHL/TNT and so on. Other shipping terms can also be arranged according to specific requirements.
3. We are not responsible for any accidents, delays or other issues that are the responsibility of the shipping service.
4. All our LCD panel will be tested pcs by pcs before been shipped out.
| Dot Resolution | 1280(RGB)×1024 (SXGA) |
|---|---|
| Pixel Configuration | RGB Vertical Stripe |
| Pixel Density | 86 PPI |
| Aspect Ratio | 5:4 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.098×0.294 mm (H×V) |
| Pixel Pitch | 0.294×0.294 mm (H×V) |
| Weight | 1.25/1.30Kgs (Typ./Max.) |
| Surface | Antiglare, Hard coating (3H) |
| Active Area | 376.32×301.06 mm (H×V) |
| Bezel Area | 380.3×305.0 mm (H×V) |
| Outline Dimension | 396×324 mm (H×V) |
| Outline Depth | 12.8 (Typ.) mm |
| Holes & Brackets | Side mounting holes (4-M3) on left, right bezel |
| Landscape or Portrait | Landscape type |
| Touch Panel | Without |
Our Services
Payment:
(1) Bank transfer , Western Union , T/T, Paypal are accepted.
(2) If any problem of payment, you can contact with us.
Shipment:
(1) Worldwide shipping. Any delivery way you want to choose, please contact us.
(2) All our LCD display will be shipped within1-3 days after confirmed full payment. Please inform us the price you want to mark on the invoice for the LCD screens.
(3) Please make sure your address is correct and deliverable by Express you choose. Your full name is recommended, especially Russian buyers.
(4) Delivery time is approximate:
------Via DHL, Fedex, UPS: 3-7working days
------Via EMS:7-15 working days
------Via Direct Express Line:1-3 working days.
| Display Mode | IPS, Normally Black, Transmissive |
|---|---|
| Brightness | 330 cd/m² (Typ.) |
| Contrast Ratio | 900 : 1 (Typ.) (Transmissive) |
| Display Color | 16.7M (8-bit) |
| Color Gamut | 74% NTSC (CIE1931) |
| Response Time | 7/11 (Typ.)(Tr/Td) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction | Symmetry |
| White color Chromaticity | Wx:0.314; Wy:0.338 |
| White Variation | 1.33 (Max.)(9 points) |
| Sunlight Readable | N |
Packing& Shipping:
Fast & Cheap Delivery: We have big discount from forwarder (Long Contract).
Guarantee:
(1) All items will be strictly tested and shipped with strong package.
(2) We have 3~6months warranty for every item, depend on the different item.
(3) We will do our best to solve any possible problem for your after sale. Please contact with us.
| Vertical Frequency | 60Hz |
|---|---|
| Reverse Scan | No |
| Total Power Consumption | 15.52 (Typ.) |
Below are our other LCD panels stock for your easy reference:
| LD070WS1-SL01 | LG Display | 7.0" | 1024×600 |
| LH450WX1-SH01 | LG Display | 4.5" | 720×1280 |
| LH430M01-SH01 | LG Display | 4.3" | 540×960 |
| LH400WV4-SH01 | LG Display | 4.0" | 480×800 |
| LH430WV3-SH02 | LG Display | 4.3" | 480×800 |
| LP156WH6-TJA1 | LG Display | 15.6" | 1366×768 |
| LH400WV3-SH04 | LG Display | 4.0" | 480×800 |
| LH350H05-SH01 | LG Display | 3.5" | 320×480 |
We also have other industrial LCD panels, pls contact to us for the further information

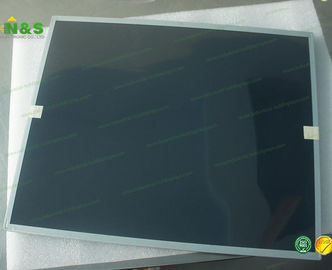

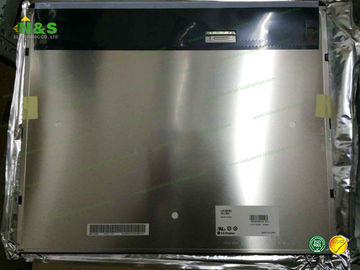

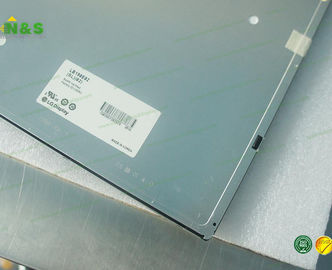

LB190E02-SL02 pictures
