Product Details:
|
| Panel Model: | LP101WH2-TLA2 | Panel Brand: | LG Display |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD | Display Mode: | Normally White |
| Active Area: | 222.73×125.22 Mm | Outline: | 245×146.5×3.6 Mm |
| High Light: | lg display panel,lg lcd display |
||

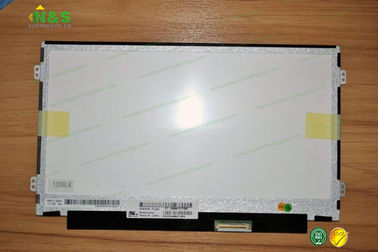

LG Display LP101WH2-TLA2 Active Area 222.73×125.22 mm Contrast Ratio 500:1 (Typ.) resolution 1366×768 new and original
Our service
1. Agent Brand:
* Our sourcing line contained but not limited to Samsung, LG, Sharp, AUO, Tianma, Chimei, Hannstar, Innolux, BOE and more bands tft lcd moulds from 2010, you can get the most competitive price for real products;
2. Quality to be guaranteed:
* All the panels are 100% original and brand new, no fake panels exists.Take the lcd screen from us, you can enjoy the real panels directly from original factory;
* Original package and Seal for batch orders, all the products are in original package from original factory directly, and all the LCD panels packages have labels and serial number, you can check them;
* We also have international logistic center in Hongkong to support your batch orders to be delivered from Hongkong directly.
* Products are sold to more than 20 countries.
* One year warranty .
6. The best TFT LCD solution:
*more tft lcd model detail information for the LCD screens including size, resolution, brightness, operating temperature or life time etc in our web site.
To get the latest prices, pls feel free to contact us.
Why Choose US:
1. Prompt reply within 12 hours.
2. Understand inquiry in any language.
3. Products with top quality.
4. Very competitive prices.
5. 6-year experience in industrial LCD Screen replacements.
6. Distributor of famous brands Panel: Samsung, LG, Sharp, AUO, TPO, Tianma, Mitsubishi and more.
7. Fabulous after-sale service.
LP101WH2-TLA2 Basic Information
| Panel Model | LP101WH2-TLA2 |
| Panel Brand | LG Display |
| Descrition | a-Si TFT-LCD ,10.1 inch, 1366×768 |
| Panel Type | a-Si TFT-LCD |
| Model Alias | LP101WH2 (TL)(A2) |
| Operating Temperature | 0 ~ 50 °C |
| Storage Temperature | -20 ~ 60 °C |
LP101WH2-TLA2 Mechanical Features
| Dot Resolution | 1366(RGB)×768 (WXGA) |
| Pixel Configuration | RGB Vertical Stripe |
| Pixel Density | 155 PPI |
| Aspect Ratio | 16:9 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.05435×0.16305 mm (H×V) |
| Pixel Pitch | 0.16305×0.16305 mm (H×V) |
| Weight | 170/180g (Typ./Max.) |
| Surface | Glare (Haze 0%), Hard coating (3H), Reflection 4.5% (Typ.) |
| Active Area | 222.73×125.22 mm (H×V) |
| Bezel Area | 226.9×128.5 mm (H×V) |
| Outline Dimension | 245×146.5 mm (H×V) |
| Outline Depth | 3.6 (Max.) mm |
| Shape Style | Flat (PCBA Flat, Depth 3.4~4.0mm) |
| Holes & Brackets | Face mounting holes (8 pcs) on left, right slugs |
| Landscape or Portrait | Landscape type |
| Touch Panel | Without |
LP101WH2-TLA2 Optical Features
| Display Mode | TN, Normally White, Transmissive |
| Brightness | 200 cd/m² (Typ.) |
| Contrast Ratio | 500 : 1 (Typ.) (Transmissive) |
| Display Color | 262K (6-bit) |
| Response Time | 16 (Typ.)(Tr+Td) |
| Viewing Angle | 45/45/15/35 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction | 6 o'clock |
| White color Chromaticity | Wx:0.313; Wy:0.329 |
| White Variation | 1.40/1.60 (Typ./Max.)(13 points) |
| Sunlight Readable | N |
Here comes our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| LH570WX2-SH01 | LG Display | 5.7" | 720×1280 |
| LC320DXY-SGA1 | LG Display | 31.5" | 1366×768 |
| LC320DXY-SJA1 | LG Display | 31.5" | 1366×768 |
| LC490EQY-SHM2 | LG Display | 49" | 3840×2160 |
| LC490DUJ-SGE4 | LG Display | 49" | 1920×1080 |
| LC490EGY-SHM2 | LG Display | 49" | 3840×2160 |
| LC490EGY-SHF1 | LG Display | 49" | 3840×2160 |
| LC490EGJ-SHA1 | LG Display | 49" | 3840×2160 |
| LC490EGY-SHA1 | LG Display | 49" | 3840×2160 |
| LM238WF2-SJF1 | LG Display | 23.8" | 1920×1080 |
| LC320DXY-SJA4 | LG Display | 31.5" | 1366×768 |
