Product Details:
|
| Panel Size: | 10.1 Inch | Resolution: | 1024×600 |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD | Surface: | Antiglare |
| Contrast Ratio: | 400:1 (Typ.) | Input Voltage: | 3.3V (Typ.) |
| High Light: | auo display panel,auo lcd display |
||

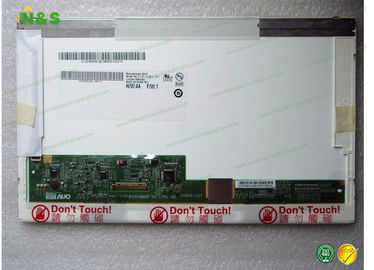

Normally White AUO B101AW03 V1 10.1 inch 1024×600 for Industrial LCD Displays Contrast Ratio 400:1 (Typ.)
FAQ
Q1: What's price?
A1: We provide reasonable price and recommend suitable batteries to our customers.
Q2: What's delivery time?
A2: The delivery time is normally 1-3 working days after payment.
Q3: What's the payment?
A3: We accept T/T, Western Union, MoneyGram, Paypal
Q4: Can we visit your factory?
A4: Warmly welcome. Once we have your schedule, we will arrange professional sales team to follow up your case.
B101AW03 V1 Basic Information
| Panel Model | B101AW03 V1 |
| Panel Brand | AUO |
| Descrition | a-Si TFT-LCD ,10.1 inch, 1024×600 |
| Panel Type | a-Si TFT-LCD |
| Model Alias | B101AW03 V.1 |
| Operating Temperature | 0 ~ 50 °C |
| Storage Temperature | -20 ~ 60 °C |
B101AW03 V1 Mechanical Features
| Dot Resolution | 1024(RGB)×600 (WSVGA) |
| Pixel Configuration | RGB Vertical Stripe |
| Pixel Density | 117 PPI |
| Aspect Ratio | 16:9 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.0725×0.2088 mm (H×V) |
| Pixel Pitch | 0.2175×0.2088 mm (H×V) |
| Weight | 190g (Max.) |
| Surface | Antiglare |
| Active Area | 222.72×125.28 mm (H×V) |
| Bezel Area | 224.72×127.28 mm (H×V) |
| Outline Dimension | 235×143 mm (H×V) |
| Outline Depth | 5.2 (Max.) mm |
| Shape Style | Wedge (PCBA Bent, Depth ≥5.2mm) |
| Holes & Brackets | Side mounting holes (4-M2) on left, right bezel |
| Landscape or Portrait | Landscape type |
| Touch Panel | Without |
B101AW03 V1 Optical Features
| Display Mode | TN, Normally White, Transmissive |
| Brightness | 200 cd/m² (Typ.) |
| Contrast Ratio | 400 : 1 (Typ.) (Transmissive) |
| Display Color | 262K (6-bit) |
| Color Gamut | 45% NTSC (CIE1931) |
| Response Time | 16 (Typ.)(Tr+Td) |
| Viewing Angle | 45/45/15/35 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction | 6 o'clock |
| White color Chromaticity | Wx:0.313; Wy:0.329 |
| White Variation | 1.25/1.60 (Max.)(5/13 points) |
| Sunlight Readable | N |
N&S Delivery Details:
1) We are shipping this item to worldwide.
2) Our LCD panel orders processed within 1-3 working days of payment verification.
3) If you have not received the item on the Delivery Time. Please contact us. We will track the shipment and get back to your as soon as possible with a reply. Our goal is customer satisfaction.
5) We use the professional & safe package for our LCD screen replacements for you: Antistatic bag, Bubble Bag, Foam Box and Carton Box.
6) We will keep you updated for the Tracking NO. after we ship out the parcel to you.
7) Feel free to contact to us if there is any problems during the shipment process.
Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information: salespm@nselectronic.com.hk
| Panel Model | Brand | Size | Resolution |
| H572DAN01.0 | AUO | 5.7" | 1080×1920 |
| H546DAN01.2 | AUO | 5.5" | 1080×1920 |
| H499TAN03.0 | AUO | 5.0" | 720×1280 |
| H572TAN01.0 | AUO | 5.7" | 720×1280 |
| H466TAN02.3 | AUO | 4.7" | 720×1280 |
| H446TAN03.1 | AUO | 4.5" | 720×1280 |
| H446TAN03.0 | AUO | 4.5" | 720×1280 |
| H546AAN01.0 | AUO | 5.5" | 540×960 |
| B070ATN01.0 CELL | AUO | 7.0" | 1024×600 |
| A070SN02 V0 CELL | AUO | 7.0" | 800×600 |
| A050VVN01.2 | AUO | 5.0" | 480×800 |
