Product Details:
|
| Panel Size: | 10.4 Inch | Resolution: | 1024×768 |
|---|---|---|---|
| Contrast Ratio: | 250:1 (Typ.) | Frequency: | 60Hz |
| Input Voltage: | 3.3V (Typ.) | ||
| High Light: | industrial touch screen display,industrial lcd screen |
||

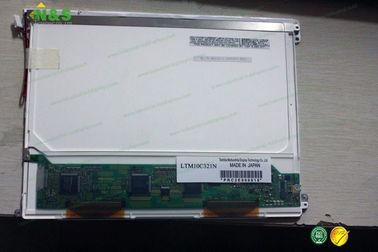

LTM10C321N 10.4 inch resolution 1024×768 Normally White Outline 238.6×173.2×5 mm Contrast Ratio 250:1 (Typ.)
LTM10C321N Basic Information
| Panel Model | LTM10C321N |
| Panel Brand | TOSHIBA |
| Descrition | LTPS TFT-LCD ,10.4 inch, 1024×768 |
| Panel Type | LTPS TFT-LCD |
| Operating Temperature | 0 ~ 50 °C |
| Storage Temperature | -20 ~ 60 °C |
LTM10C321N Mechanical Features
| Dot Resolution | 1024(RGB)×768 (XGA) |
| Pixel Configuration | RGB Vertical Stripe |
| Pixel Density | 123 PPI |
| Aspect Ratio | 4:3 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.0685×0.2055 mm (H×V) |
| Pixel Pitch | 0.2055×0.2055 mm (H×V) |
| Surface | Antiglare, Hard coating (3H) |
| Active Area | 210.432×157.824 mm (H×V) |
| Bezel Area | 217.2×164.7 mm (H×V) |
| Outline Dimension | 238.6×173.2 mm (H×V) |
| Outline Depth | 5.0 (Max.) mm |
| Holes & Brackets | Face mounting holes (4-Φ3.0) on left, right slugs |
| Landscape or Portrait | Landscape type |
| Touch Panel | Without |
LTM10C321N Optical Features
| Display Mode | TN, Normally White, Transmissive |
| Brightness | 150 cd/m² (Typ.) |
| Contrast Ratio | 250 : 1 (Typ.) (Transmissive) |
| Display Color | 262K (6-bit) |
| Response Time | 50/50 (Max.)(Tr/Td) |
| Viewing Angle | 30/30/10/20 (Min.)(CR≥10) (L/R/U/D) |
| Viewing Direction | 6 o'clock |
| White color Chromaticity | Wx:0.340; Wy:0.340 |
| White Variation | 1.82 (Max.)(9 points) |
| Sunlight Readable | N |
