Product Details:
|
| Resolution: | 800×600 | Panel Size: | 8.4 Inch |
|---|---|---|---|
| Panel Type: | LTPS TFT-LCD | Active Area: | 170.4×127.8 Mm |
| Contrast Ratio: | 300:1 (Typ.) | Input Voltage: | 3.3V (Typ.) |
| High Light: | industrial lcd screen,industrial lcd panel |
||

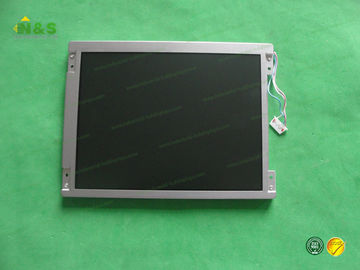

Toshiba 8.4 inch LTM08C351L 800×600 Active Area 170.4×127.8 mm Contrast Ratio 300:1 (Typ.) Input Voltage 3.3V (Typ.)
Our Advantage :
>>Quality Guarantee:
Our LCD Panels are 100% original and brand new!
Warranty : 12 months
You can enjoy the real panels directly from the LCD panel brand distributor.
>>Packing Guarantee:
All the products are in original package from original factory directly, and all the LCD panel packages with labels and serial number!
>>Delivery Guarantee:
We have international logistic center in HK, so we can arrange fastest and most convenient delivery for you!
>>After-Sale service
We have many years good experience on display solution.
Any question, we will reply you within 12 hours.
Feedback:
(1) Your early confirmation will be highly appreciated after receiving the item.
(2) If you are satisfied with our item, pls contact to us also for other items, actually, we are not only own professional sourcing lines for AUO, LG, Samsung, Tianma, KOE, NEC, Hitachi, Optrex and more.
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| LD079X02-SHA1 | LG Display | 7.9" | 768×1024 |
| HV320WHB-N00 | BOE | 31.5" | 1366×768 |
| M185XTN01.3 CELL | AUO | 18.5" | 1366×768 |
| LH550WF2-SH01 | LG Display | 5.5" | 1080×1920 |
| M280DGJ-Q02 | Innolux | 28.0" | 3840×2160 |
| LC490EGY-SHM1 | LG Display | 49" | 3840×2160 |
| LC390TU1A | PANDA | 39" | 1366×768 |
| CLAN043LL31 1DN | CPT | 4.3" | 480×800 |
| CLAN050LL31 1XG | CPT | 5.0" | 480×800 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk
LTM08C351L Basic Information
| Panel Model | LTM08C351L |
| Panel Brand | Toshiba Matsushita |
| Descrition | LTPS TFT-LCD ,8.4 inch, 800×600 |
| Panel Type | LTPS TFT-LCD |
| Operating Temperature | -10 ~ 60 °C |
| Storage Temperature | -20 ~ 65 °C |
LTM08C351L Mechanical Features
| Dot Resolution | 800(RGB)×600 (SVGA) |
| Pixel Configuration | RGB Vertical Stripe |
| Pixel Density | 119 PPI |
| Aspect Ratio | 4:3 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.071×0.213 mm (H×V) |
| Pixel Pitch | 0.213×0.213 mm (H×V) |
| Weight | 385g (Typ.) |
| Active Area | 170.4×127.8 mm (H×V) |
| Bezel Area | 173.4×130.8 mm (H×V) |
| Outline Dimension | 199.5×149.5 mm (H×V) |
| Outline Depth | 12.0 (Max.) mm |
| Holes & Brackets | Face mounting holes (4-Φ3.4) |
| Landscape or Portrait | Landscape type |
| Touch Panel | Without |
LTM08C351L Optical Features
| Display Mode | TN, Normally White, Transmissive |
| Brightness | 350 cd/m² (Typ.) |
| Contrast Ratio | 300 : 1 (Typ.) (Transmissive) |
| Display Color | 262K (6-bit) |
| Response Time | 20/25 (Typ.)(Tr/Td) |
| Viewing Angle | 50/50/40/50 (Typ.)(CR≥10) (L/R/U/D) |
| Sunlight Readable | N |
LTM08C351L Electronics Feature
| Reverse Scan | No |
| Total Power Consumption | 6.4W (Typ.) |
