Product Details:
|
| Panel Type: | A-Si TFT-LCD | Aspect Ratio: | 16:9 (H:V) |
|---|---|---|---|
| Resolution: | 1366×768 | Weight: | 210g (Max.) |
| Brightness: | 350 Cd/m² (Typ.) | ||
| High Light: | industrial touch screen display,industrial lcd screen |
||

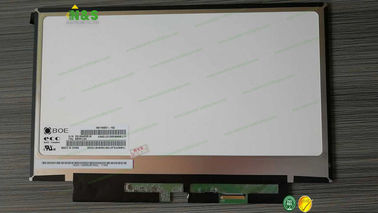

Normally Black HN116WX1-102 11.6 inch Brightness 350 cd/m² (Typ.) resolution 1366×768 new and original
Here comes our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| HV320WHB-N00 | BOE | 31.5" | 1366×768 |
| BP101WX7-100 | BOE | 10.1" | 1280×800 |
| HV550QU2-305 | BOE | 55" | 3840×2160 |
| MV238FHB-N10 | BOE | 23.8" | 1920×1080 |
| BP080WX2-200 | BOE | 8.0" | 800×1280 |
| BT033HVMG001 | BOE | 3.3" | 320×480 |
| BA101WS2-101 | BOE | 10.1" | 1024×600 |
| HV280WX2-270 | BOE | 27.5" | 1366×768 |
| BF053HDMU401 | BOE | 5.3" | 720×1280 |
| BD039WVL-600 | BOE | 4.0" | 480×800 |
| BF055HDQ-100 | BOE | 5.5" | 720×1280 |
Pls contact to us for more stock information: salespm@nselectronic.com.hk
HN116WX1-102 Basic Information
| Panel Model | HN116WX1-102 |
| Panel Brand | BOE |
| Descrition | a-Si TFT-LCD ,11.6 inch, 1366×768 |
| Panel Type | a-Si TFT-LCD |
| Operating Temperature | 0 ~ 50 °C |
| Storage Temperature | -20 ~ 60 °C |
| Remarks | eDP1.2 |
HN116WX1-102 Mechanical Features
| Dot Resolution | 1366(RGB)×768 (WXGA) |
| Pixel Configuration | RGB Vertical Stripe |
| Pixel Density | 135 PPI |
| Aspect Ratio | 16:9 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.0625×0.1875 mm (H×V) |
| Pixel Pitch | 0.1875×0.1875 mm (H×V) |
| Weight | 210g (Max.) |
| Surface | Glare (Haze 0%), Hard coating (3H) |
| Active Area | 256.125×144 mm (H×V) |
| Bezel Area | 259.1×147.0 mm (H×V) |
| Outline Dimension | 269×177.71 mm (H×V) |
| Outline Depth | 3.0 (Max.) mm |
| Shape Style | Slim (PCBA Flat, Depth ≤3.2mm) |
| Holes & Brackets | Without |
| Landscape or Portrait | Landscape type |
| Touch Panel | Without |
HN116WX1-102 Optical Features
| Display Mode | ADS, Normally Black, Transmissive |
| Brightness | 350 cd/m² (Typ.) |
| Contrast Ratio | 800 : 1 (Typ.) (Transmissive) |
| Display Color | 262K (6-bit) |
| Color Gamut | 50% NTSC (CIE1931) |
| Response Time | 30 (Max.)(Tr+Td) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction | Symmetry |
| White color Chromaticity | Wx:0.313; Wy:0.329 |
| White Variation | 1.25/1.54 (Max.)(5/13 points) |
| Sunlight Readable | N |
