Product Details:
|
| Panel Size: | 11.6 Inch | Resolution: | 1366×768 |
|---|---|---|---|
| Panel Model: | NT116WHM-N23 | Luminance: | 220 Cd/m² (Typ.) |
| Good View At: | 6 O'clock | ||
| High Light: | industrial lcd screen,industrial lcd panel |
||

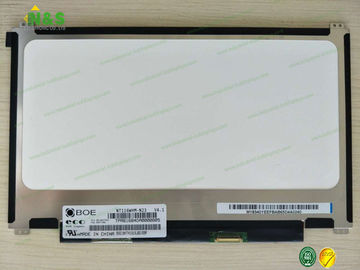

Normally White NT116WHM-N23 11.6 inch resolution 1366×768 Luminance 220 cd/m² (Typ.) Refresh Rate 60Hz
Our Service
• Long lasting product cycle for continuity thru all phases of project rollouts and servicing
• Competitive price for different brands hard disk.
• Mass stock with the better price.
• Multiple options.
• Warranty service.
• Better team to provide the before-sales, on-sale and after-sale service
• Pls send us message if any hard disk needed.
Panel Brand BOE
Panel Model NT116WHM-N23
Panel Size 11.6 inch
Panel Type a-Si TFT-LCD, LCM
Resolution 1366(RGB)×768 , WXGA
Pixel Format RGB Vertical Stripe
Display Area 256.125(W)×144(H) mm
Outline Size 268(W)×172.98(H) ×3(D) mm
Surface Glare (Haze 0%), Hard coating (3H)
Brightness 220 cd/m² (Typ.)
Contrast Ratio 500:1 (Typ.) (TM)
Viewing Angle 45/45/20/40 (Typ.)(CR≥10)
Display Mode TN, Normally White, Transmissive
Best View on 6 o'clock
Response Time 12 (Typ.)(Tr+Td)
Display Colors 262K 45% (CIE1931)
Lamp Type 8S3P WLED , 15K hours , With LED Driver
Frequency 60Hz
Touch Screen Without
Shape Style Slim (PCBA Flat, Depth ≤3.2mm)
Signal Interface eDP (1 Lane) , 30 pins , Connector
Input Voltage 3.3V (Typ.)
Environment Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C
The reasons you choose us
1).More competitive price! As a professional LCD Distributor, we have our own souring lines &solutions to support us for the more competitive service, not only the price, but also the stock for the hard-to-find LCD panels.
2).Great quality! All LCD Screen we sent are with good quality guarantee, 100% quality check and full one year warranty!
3).Fast delievery! Delivery time will be faster than others.
4).Great shipping service! We have cooperated with DHL,UPS and EMS for long time, so we could promise save much more money on the shipping cost and better service is offered!
5).Best sale-service! Professional team to service with you before sale, on sale & after service.
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| TV079X0S-NA0-5QP0 | BOE | 7.9" | 768×1024 |
| TV079X0B-NA0 | BOE | 7.9" | 768×1024 |
| TV080WUB-NW0-3900 | BOE | 8.0" | 1200×1920 |
| ET058Z8B-NE0 | BOE | 5.8" | 1280×768 |
| BP101WX7-210 | BOE | 10.1" | 1280×800 |
| BF050HDE-400 | BOE | 5.0" | 720×1280 |
| 8.0 Rearview Mirror | BOE | 8.0" | 1600×480 |
| BP080WX3-200 | BOE | 8.0" | 800×1280 |
| BP070WX6-400 | BOE | 7.0" | 800×1280 |
| HV490FHB-N80 | BOE | 49" | 1920×1080 |
| HV430FHB-N40 | BOE | 43" | 1920×1080 |
We also have other industrial LCD panels, pls contact to us for the further information
