Product Details:
|
| Panel Type: | A-Si TFT-LCD | Panel Size: | 5.7 Inch |
|---|---|---|---|
| Resolution: | 320×240 | Contrast Ratio: | 450:1 (Typ.) |
| Frequency: | 60Hz | ||
| High Light: | industrial touch screen display,industrial lcd panel |
||

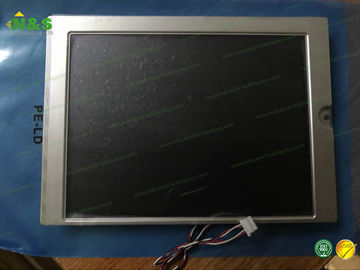

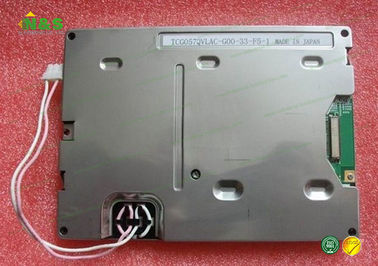

Normally White 5.7 inch TCG057QVLAC-G00 Kyocera TFT LCD Module 320×240 resolution new and original
TCG057QVLAC-G00 Basic Information
| Panel Model | TCG057QVLAC-G00 |
| Panel Brand | Kyocera |
| Descrition | a-Si TFT-LCD ,5.7 inch, 320×240 |
| Panel Type | a-Si TFT-LCD |
| Operating Temperature | -10 ~ 70 °C |
| Storage Temperature | -30 ~ 80 °C |
TCG057QVLAC-G00 Mechanical Features
| Dot Resolution | 320(RGB)×240 (QVGA) |
| Pixel Configuration | RGB Vertical Stripe |
| Pixel Density | 70 PPI |
| Aspect Ratio | 4:3 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.120×0.360 mm (H×V) |
| Pixel Pitch | 0.360×0.360 mm (H×V) |
| Weight | 220g (Typ.) |
| Surface | Glare (Haze 0%) |
| Active Area | 115.2×86.4 mm (H×V) |
| Bezel Area | 117.2×88.4 mm (H×V) |
| Outline Dimension | 144×104.8 mm (H×V) |
| Outline Depth | 13.0±0.5 mm |
| Holes & Brackets | Rear mounting holes (4-Φ2.6) |
| Landscape or Portrait | Landscape type |
| Touch Panel | Without |
TCG057QVLAC-G00 Optical Features
| Display Mode | TN, Normally White, Transmissive |
| Brightness | 350 cd/m² (Typ.) |
| Contrast Ratio | 450 : 1 (Typ.) (Transmissive) |
| Display Color | 262K (6-bit) |
| Response Time | 10/25 (Typ.)(Tr/Td) |
| Viewing Angle | 70/70/50/70 (Typ.)(CR≥5) (L/R/U/D) |
| Sunlight Readable | N |
Shipment for the LCD Display Panels:
1. Safe & Professional package for our LCD panels.
2. We can ship to you by UPS/FEDEX/DHL/TNT and so on. Other shipping terms can also be arranged according to specific requirements.
3. We are not responsible for any accidents, delays or other issues that are the responsibility of the shipping service.
4. All our LCD panel will be tested pcs by pcs before been shipped out.
FAQ
Q1: What's price?
A1: We provide reasonable price and recommend suitable batteries to our customers.
Q2: What's delivery time?
A2: The delivery time is normally 1-3 working days after payment.
Q3: What's the payment?
A3: We accept T/T, Western Union, MoneyGram, Paypal
Q4: Can we visit your factory?
A4: Warmly welcome. Once we have your schedule, we will arrange professional sales team to follow up your case.
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| DMC-20261NYJ-LY-CKE-CNN | Kyocera | 116×37 | |
| DMC-16230NY-LY-EEE-EGN | Kyocera | 122×44 | |
| DMC-16202NY-LY-BJE-BLN | Kyocera | 84×45 | |
| C-51850NFJ-SLW-ADN | Kyocera | 182×34.5 | |
| C-51505NFQJ-LG-AKN | Kyocera | 116×37 | |
| C-51505NFQJ-LW-ALN | Kyocera | 116×37 | |
| C-51505NFQJ-LB-AJN | Kyocera | 116×37 | |
| C-51505NFJ-SLW-APN | Kyocera | 116×37 | |
| C-51505NFJ-SLW-AIN | Kyocera | 116×37 | |
| C-51505NFJ-SLG-AHN | Kyocera | 116×37 | |
| C-51849NFJ-SLW-ADN | Kyocera | 190×54 |
