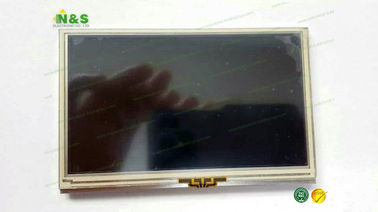

LB043WQ1-TD01 LG Screen Replacement 4.3 Inch Resolution 480×272 Normally White

LB043WQ1-TD01 LG Screen Replacement 4.3 Inch Resolution 480×272 Normally White

LB043WQ1-TD01 LG Screen Replacement 4.3 Inch Resolution 480×272 Normally White

Product Details:

Place of Origin: KOREA
Brand Name: LG.Philips LCD
Certification: ISO9001
Model Number: LB043WQ1-TD01

Payment & Shipping Terms:

Minimum Order Quantity: 1 Piece
Packaging Details: Antistatic bag, Bubble Bag, Foam Box and Carton Box.
Delivery Time: 1-3 Working Days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 500PCS/DAY
Contact Now
Detailed Product Description
Panel Model: LB043WQ1-TD01 Panel Size: 4.3 Inch
Outline: 105.5×67.2 Mm Resolution: 480×272
Contrast Ratio: 400:1 (Typ.) Frequency: 60Hz

LB043WQ1-TD01 new and original 4.3 inch Resolution 480×272 Normally White Outline 105.5×67.2 mm



Our Advantages

  • We can be your professional Agent & Sourcing Line for the Hard-to-find LCD screen replacements.
  • 6-Year experience in the Medical LCD display, Aerospace LCD screen, Gaming LCD replacements, Military LCD screen, Kiosk LCD Display, Transportation LCD, industrial LCD panel and more.
  • Welcome small, medium & big quantity orders.
  • 100% QC Inspection before Shipment.
  • After-sales-service With 12 Months Warranty for our LCD panels.

LB043WQ1-TD01 Basic Information

Panel Model LB043WQ1-TD01
Panel Brand LG.Philips LCD
Descrition a-Si TFT-LCD ,4.3 inch, 480×272
Panel Type a-Si TFT-LCD
Model Alias LB043WQ1 (TD)(01)
Operating Temperature -20 ~ 70 °C
Storage Temperature -30 ~ 80 °C
Remarks 3 in 1 FPC (43.21mm length, bottomt side), DE only mode



LB043WQ1-TD01 Mechanical Features

Dot Resolution 480×272(RGB) (WQVGA)
Pixel Configuration RGB Horizontal Stripe
Pixel Density 128 PPI
Aspect Ratio 16:9 (H:V)
Form Factor Flat Rectangle Display
Dot Pitch 0.198×0.066 mm (H×V)
Pixel Pitch 0.198×0.198 mm (H×V)
Weight 70g (Typ.)
Surface Antiglare
Active Area 95.04×53.856 mm (H×V)
Bezel Area 98.24×57.06 mm (H×V)
Outline Dimension 105.5×67.2 mm (H×V)
Outline Depth 4.0±0.2 mm
Landscape or Portrait Landscape type
Touch Panel Embeded (4-wire Resistive, Film / Glass)



LB043WQ1-TD01 Optical Features

Display Mode TN, Normally White, Transmissive
Brightness 350 cd/m² (Typ.)
Contrast Ratio 400 : 1 (Typ.) (Transmissive)
Display Color 16.7M (8-bit)
Color Gamut 50% NTSC (CIE1931)
Response Time 25 (Typ.)(Tr+Td)
Viewing Angle 70/70/65/55 (Typ.)(CR≥10) (L/R/U/D)
Viewing Direction 12 o'clock
White color Chromaticity Wx:0.317; Wy:0.340
White Variation 1.40/1.60 (Typ./Max.)(9 points)
Sunlight Readable N



Excellent service on before-sale, on-sale and after-sale

1. We provide one year warranty, will provide the after-sale service for you if any quality problems.

2.Your inquiry related to our products or prices will be replied in 24 hours.

3. We will track the shipping status time by time so that buyer can receive our goods in time and safely.



Here comes our other LCD panels stock for your easy reference:

Panel Model Brand Size Resolution
LH430WV4-SH01 LG Display 4.3" 480×800
LH430WV1-SH05 LG Display 4.3" 480×800
LH430M02-SH01 LG Display 4.3" 540×960
LH350H05-SH03 LG Display 3.5" 320×480
LH320H04-SH01 LG Display 3.2" 320×480
LH300WQ5-SH02 LG Display 3.0" 240×400
LH176J03-SH03 LG Display 1.8" 220×176
LH300WQ2-SH16 LG Display 3.0" 240×400
LH570WX2-SH01 LG Display 5.7" 720×1280
LC320DXY-SGA1 LG Display 31.5" 1366×768
