Product Details:
|
| Panel Type: | CSTN-LCD | Panel Size: | 5.7 Inch |
|---|---|---|---|
| Resolution: | 320×240 | Outline: | 168×111 Mm |
| Display Colors: | Color | Frequency: | 120Hz |
| High Light: | industrial lcd screen,industrial lcd panel |
||

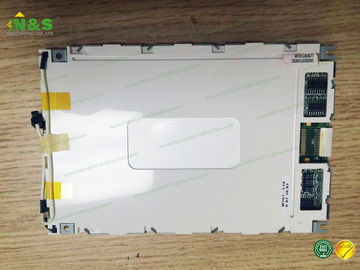

LCBHBT161M Normally Black resolution 320×240 Active Area 115.17×86.37 mm 5.7 inch Contrast Ratio 30:1 (Typ.)
LCBHBT161M Mechanical Features
| Dot Resolution | 320(RGB)×240 (QVGA) |
| Pixel Configuration | RGB Vertical Stripe |
| Pixel Density | 70 PPI |
| Aspect Ratio | 4:3 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.120×0.360 mm (H×V) |
| Pixel Pitch | 0.360×0.360 mm (H×V) |
| Weight | 280g |
| Active Area | 115.17×86.37 mm (H×V) |
| Bezel Area | 120.0×90.0 mm (H×V) |
| Outline Dimension | 168×111 mm (H×V) |
| Outline Depth | 7.4 mm |
| Holes & Brackets | Face mounting holes (2-R1.75, 2-Φ3.5) |
| Landscape or Portrait | Landscape type |
| Touch Panel | Without |
LCBHBT161M Optical Features
| Display Mode | STN, Normally Black, Transmissive |
| Brightness | 75 cd/m² (Typ.) |
| Contrast Ratio | 30 : 1 (Typ.) (Transmissive) |
| Display Color | Color () |
| Response Time | 240/100 (Typ.)(Tr/Td) |
| Viewing Direction | 6 o'clock |
| White color Chromaticity | Wx:0.302; Wy:0.313 |
| Sunlight Readable | N |
LCBHBT161M Electronics Feature
| Vertical Frequency | 120Hz |
| Reverse Scan | No |
LCBHBT161M Backlight System
| Lamp Position | Edge light type |
| Lamp Type | CCFL |
| Lamp Amount | 1 pcs |
| Lamp Shape | Straight |
| Lamp Life Time | 20K(Typ.) (Hours) |
| Lamp Voltage | 320V (Typ.) |
| Lamp Current | 5.0±1.0mA |
| Lamp Operating Frequency | 35±15KHz |
| Lamp Startup Voltage | 350/455V (Typ.)(Ta=+25/0℃) |
| Lamps Power Consumption | 1.6W (Typ.) |
| Interface Type | Connector |
| Lamp Driver Board | No |
Packaging & Delivery
Packaging Details:
Safey package
Plastic trays inside
2 layes of cartons
Fragile sign on top
Can be customize 3.5 inch spare parts auo used lcd panel
Delivery Detail: 1-3 Working Days
FAQ
Q1: What's the quality of your Hard Disk?
A: Various brands for hard disk etc. We are available to meet your different requirements.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 12-month warranty after shipping to assure you a stable performance.
Q4: How long is the lead time?
A: The lead time is about 2-3 working days after receipt of payment.
Q5: Do you accept sample order?
A:Yes, sample order is welcome.
Q6: How can I get the quotation?
A: Please enquire via Skype, Email, Whatsapp or telephone. You will get reply within 24 hours.
