Product Details:
|
| Panel Type: | A-Si TFT-LCD | Panel Size: | 12.1 Inch |
|---|---|---|---|
| Resolution: | 1280×800 | Active Area: | 261.12×163.2 Mm |
| Contrast Ratio: | 700:1 (Typ.) | Frequency: | 60Hz |
| High Light: | industrial lcd screen,industrial lcd panel |
||

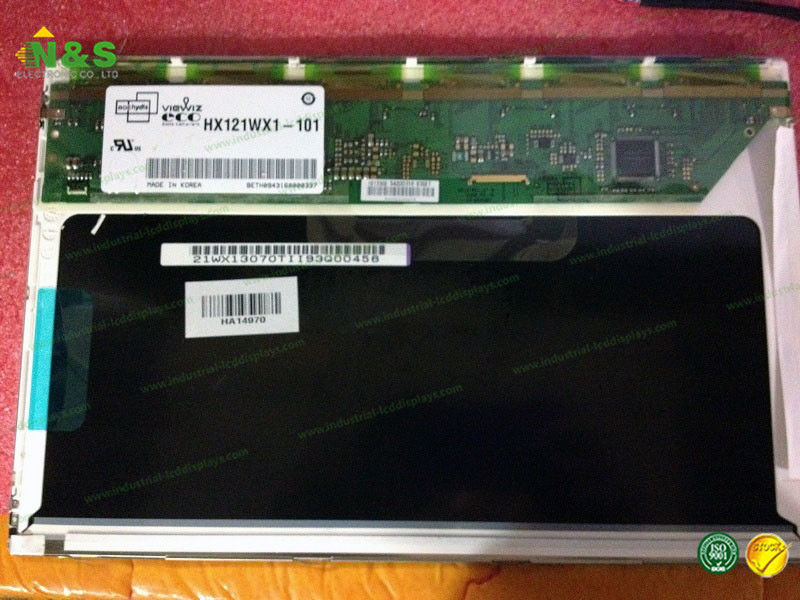

Normally Black HX121WX1-101 TFT LCD Module HYDIS 12.1 inch Active Area 261.12×163.2 mm Frequency 60Hz
Why Choose US:
1. Prompt reply within 12 hours.
2. Understand inquiry in any language.
3. Products with top quality.
4. Very competitive prices.
5. 6-year experience in industrial LCD Screen replacements.
6. Distributor of famous brands Panel: Samsung, LG, Sharp, AUO, TPO, Tianma, Mitsubishi and more.
7. Fabulous after-sale service.
Packaging & Shipping:
Delivery Information:
Our professional testing team will test the LCD panels pcs by pcs, to make sure the LCD screen sent out are with good quality.
Shipping Method:
By Express: FedEx, DHL, EMS, TNT, UPS,
By Logistics: By air
Shipping Time:
From Monday to Saturday 8:00am-17:30pm
Shipping Address:
If by T/T, shipping address as communicate.
Here comes our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| TM060JYSP02 | Tianma | 6.0" | 720×1280 |
| LH500WX2-SH03 | LG Display | 5.0" | 720×1280 |
| CLAN101FP05 XG | CPT | 10.1" | 1920×1200 |
| ST3151A05-9 | CSOT | 31.5" | 1366×768 |
| BF050HDE-400 | BOE | 5.0" | 720×1280 |
| T320HVN05.8 CELL | AUO | 31.5" | 1920×1080 |
| T500HVN07.5 CELL | AUO | 50" | 1920×1080 |
| LD070WU2-SH01 | LG Display | 7.0" | 1200×1920 |
| 8.0 Rearview Mirror | BOE | 8.0" | 1600×480 |
Pls contact to us for more stock information: salespm@nselectronic.com.hk
HX121WX1-101 Basic Information
| Panel Model | HX121WX1-101 |
| Panel Brand | HYDIS |
| Descrition | a-Si TFT-LCD ,12.1 inch, 1280×800 |
| Panel Type | a-Si TFT-LCD |
| Operating Temperature | 0 ~ 50 °C |
| Storage Temperature | -20 ~ 60 °C |
HX121WX1-101 Mechanical Features
| Dot Resolution | 1280(RGB)×800 (WXGA) |
| Pixel Configuration | RGB Vertical Stripe |
| Pixel Density | 124 PPI |
| Aspect Ratio | 16:10 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.068×0.204 mm (H×V) |
| Pixel Pitch | 0.204×0.204 mm (H×V) |
| Weight | 265/275g (Typ./Max.) |
| Surface | Antiglare, Hard coating (2H) |
| Active Area | 261.12×163.2 mm (H×V) |
| Bezel Area | 265.1×167.2 mm (H×V) |
| Outline Dimension | 276.8×180 mm (H×V) |
| Outline Depth | 3.9/6.8 (Typ./Max.) mm |
| Holes & Brackets | Side mounting holes (9-M2) on left, right, up bezel |
| Landscape or Portrait | Landscape type |
| Touch Panel | Without |
HX121WX1-101 Optical Features
| Display Mode | AFFS, Normally Black, Transmissive |
| Brightness | 300 cd/m² (Typ.) |
| Contrast Ratio | 700 : 1 (Typ.) (Transmissive) |
| Display Color | 262K (6-bit) |
| Color Gamut | 42% NTSC (CIE1931) |
| Response Time | 30 (Typ.)(Tr+Td) |
| Viewing Angle | 90/90/90/90 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction | Symmetry |
| White color Chromaticity | Wx:0.313; Wy:0.329 |
| White Variation | 1.25/1.67 (Max.)(5/13 points) |
| Sunlight Readable | N |
