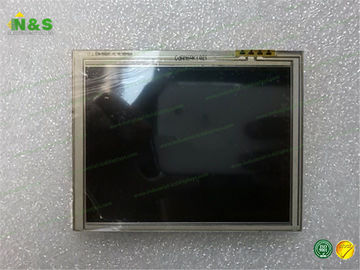

4.0 Inch LG LCD Panel Normally White LB040Q03-TD01 Contrast Ratio 300/1 Long Lifespan

4.0 Inch LG LCD Panel Normally White LB040Q03-TD01 Contrast Ratio 300/1 Long Lifespan

    • 4.0 Inch LG LCD Panel Normally White LB040Q03-TD01 Contrast Ratio 300/1 Long Lifespan
    • 4.0 Inch LG LCD Panel Normally White LB040Q03-TD01 Contrast Ratio 300/1 Long Lifespan
  • 4.0 Inch LG LCD Panel Normally White LB040Q03-TD01 Contrast Ratio 300/1 Long Lifespan

    Product Details:

    Place of Origin: Japan, Korea
    Brand Name: LG
    Certification: ISO9001
    Model Number: LB040Q03-TD01

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Packaging Details: Antistatic bag, Bubble Bag, Foam Box and Carton Box.
    Delivery Time: 2-3 working days after payment confirmation
    Payment Terms: T/T, Western Union,paypal
    Supply Ability: 100 PCS / DAY
    Contact Now
    Detailed Product Description
    Panel Type: A-Si TFT-LCD Active Area: 81.6×61.2 Mm
    Panel Size: 4.0 Inch Resolution: 320×240

    LB040Q03-TD01 4.0 inch Normally White with 81.6×61.2 mm Active Area Contrast Ratio 300:1 (Typ.)



    LB040Q03-TD01 Basic Information

    Panel Model LB040Q03-TD01
    Panel Brand LG.Philips LCD
    Descrition a-Si TFT-LCD ,4.0 inch, 320×240
    Panel Type a-Si TFT-LCD
    Model Alias LB040Q03 (TD)(01)
    Operating Temperature -20 ~ 70 °C
    Storage Temperature -30 ~ 80 °C
    Vibration Resistance 2.0G (19.6 m/s²)
    Remarks 2 in 1 FPC


    LB040Q03-TD01 Mechanical Features

    Dot Resolution 320(RGB)×240 (QVGA)
    Pixel Configuration RGB Vertical Stripe
    Pixel Density 99 PPI
    Aspect Ratio 4:3 (H:V)
    Form Factor Flat Rectangle Display
    Dot Pitch 0.085×0.255 mm (H×V)
    Pixel Pitch 0.255×0.255 mm (H×V)
    Weight 50/60g (Typ./Max.)
    Surface Antiglare
    Active Area 81.6×61.2 mm (H×V)
    Bezel Area 85.0×64.6 mm (H×V)
    Outline Dimension 96×75.6 mm (H×V)
    Outline Depth 3.49±0.3 mm
    Holes & Brackets No mounting hole
    Landscape or Portrait Landscape type
    Touch Panel Without


    Competitive Advantage:
    1. Rich experience.
    Having been specialized in this field for years, we have rich experience and widespread sales network around the word.

    2. Great quality and high purity
    Good quality is one secret for our success.

    3. Safest and fastest delivery.
    We have mass stock, so that we can arrange the delivery within 24hours once receiving the payment. Tracking number would be informed quickly after shipment.
    4. Good after-sales service.
    24/7 is available. Try our best to solve various problems customers encountered!



    Guarantee:

    (1) All items will be strictly tested and shipped with safe & professional package.

    (2) We have 2~6months warranty for every LCD screen panels, depend on the different LCD panel models.

    (3) We will do our best to solve any possible problem for your after sale. Please contact to us.



    LB040Q03-TD01 Optical Features

    Display Mode TN, Normally White, Transmissive
    Brightness 200 cd/m² (Typ.)
    Contrast Ratio 300 : 1 (Typ.) (Transmissive)
    Display Color 16.7M (8-bit)
    Response Time 30 (Typ.)(Tr+Td)
    Viewing Angle 40/40/20/40 (Typ.)(CR≥10) (L/R/U/D)
    Viewing Direction 6 o'clock
    Sunlight Readable N


    Below are our other LCD panels stock for your easy reference:

    Panel Model Brand Size Resolution
    LH570WX2-SH01 LG Display 5.7" 720×1280
    LC320DXY-SGA1 LG Display 31.5" 1366×768
    LC320DXY-SJA1 LG Display 31.5" 1366×768
    LC490EQY-SHM2 LG Display 49" 3840×2160
    LC490DUJ-SGE4 LG Display 49" 1920×1080
    LC490EGY-SHM2 LG Display 49" 3840×2160
    LC490EGY-SHF1 LG Display 49" 3840×2160
    LC490EGJ-SHA1 LG Display 49" 3840×2160
    LC490EGY-SHA1 LG Display 49" 3840×2160
    LM238WF2-SJF1 LG Display 23.8" 1920×1080
    LC320DXY-SJA4 LG Display 31.5" 1366×768
