Product Details:
|
| Panel Brand: | Lumineq | Descrition: | EL ,5.7 Inch, 320×240 |
|---|---|---|---|
| Contrast Ratio: | 50 : 1 (Typ.) | Frequency: | 120Hz |
| High Light: | industrial touch screen display,industrial lcd screen |
||

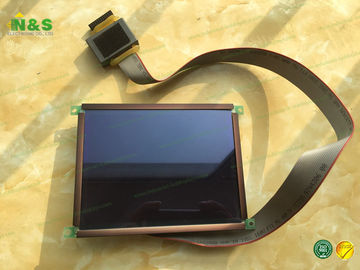

Lumineq 5.7 inch 320×240 resolution EL320.240.36 Display Colors Mono(Yellow) (1-bit) Frequency 120Hz
EL320.240.36 Basic Information
| Panel Model | EL320.240.36 |
| Panel Brand | Lumineq |
| Descrition | EL ,5.7 inch, 320×240 |
| Panel Type | EL |
| Model Alias | 996-0273-01,996-0273-01LF |
| Operating Temperature | 0 ~ 55 °C |
| Storage Temperature | -40 ~ 85 °C |
| Vibration Resistance | 3.16G (31.0 m/s²) |
| Remarks | Standard |
EL320.240.36 Mechanical Features
| Dot Resolution | 320×240 (QVGA) |
| Pixel Configuration | Rectangle |
| Pixel Density | 70 PPI |
| Aspect Ratio | 4:3 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.36×0.36 mm (H×V) |
| Pixel Pitch | 0.36×0.36 mm (H×V) |
| Weight | 183g |
| Active Area | 115.1×86.3 mm (H×V) |
| Outline Dimension | 148.1×104.7 mm (H×V) |
| Outline Depth | 17.5 mm |
| Holes & Brackets | Face mounting holes (4 pcs) |
| Landscape or Portrait | Landscape type |
| Touch Panel | Without |
EL320.240.36 Optical Features
| Brightness | 50 cd/m² (Typ.) |
| Contrast Ratio | 50 : 1 (Typ.) (Transmissive) |
| Display Color | Mono(Yellow) (1-bit) |
| Response Time | 1 (Max.) |
| Viewing Angle | 89/89/89/89 (Typ.) (L/R/U/D) |
| Viewing Direction | Symmetry |
| White Variation | 1.54 (Max.)(5 points) |
| Sunlight Readable | N |
