Product Details:
|
| Screen Size: | 12.1 Inch | Resolution: | 1024×768 |
|---|---|---|---|
| Surface: | Antiglare | Contrast Ratio: | 300:1 (Typ.) |
| Display Colors: | 262K (6-bit) | Frequency: | 60Hz |
| High Light: | industrial lcd screen,industrial lcd panel |
||

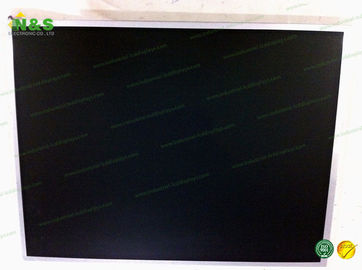

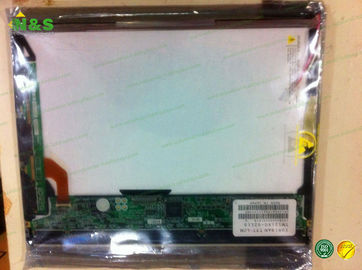

Normally White TM121XG-02L01 TORISAN 12.1 inch with 245.76×184.32 mm Surface Antiglare Frequency 60Hz
Packaging & Delivery
· Delivery Lead Time :2~3 weeks
· Minimum Order :1 pcs LCD Panel
· Supply Ability :100 PCS / Per Day
TM121XG-02L01 Basic Information
| Panel Model | TM121XG-02L01 |
| Panel Brand | TORISAN |
| Descrition | a-Si TFT-LCD ,12.1 inch, 1024×768 |
| Panel Type | a-Si TFT-LCD |
| Operating Temperature | 0 ~ 50 °C |
| Storage Temperature | -20 ~ 60 °C |
TM121XG-02L01 Mechanical Features
| Dot Resolution | 1024(RGB)×768 (XGA) |
| Pixel Configuration | RGB Vertical Stripe |
| Pixel Density | 105 PPI |
| Aspect Ratio | 4:3 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.080×0.240 mm (H×V) |
| Pixel Pitch | 0.240×0.240 mm (H×V) |
| Weight | 370g (Typ.) |
| Surface | Antiglare |
| Active Area | 245.76×184.32 mm (H×V) |
| Bezel Area | 250.4×188.9 mm (H×V) |
| Outline Dimension | 275×199 mm (H×V) |
| Outline Depth | 5.7 (Max.) mm |
| Holes & Brackets | Face mounting holes (2-Φ3.4, 2-R1.7) on left, right bezel |
| Landscape or Portrait | Landscape type |
| Touch Panel | Without |
TM121XG-02L01 Optical Features
| Display Mode | TN, Normally White, Transmissive |
| Brightness | 150 cd/m² (Typ.) |
| Contrast Ratio | 300 : 1 (Typ.) (Transmissive) |
| Display Color | 262K (6-bit) |
| Response Time | 32/13 (Typ.)(Tr/Td) |
| Viewing Angle | 40/40/10/30 (Min.)(CR≥10) (L/R/U/D) |
| Viewing Direction | 6 o'clock |
| White color Chromaticity | Wx:0.313; Wy:0.329 |
| White Variation | 1.45 (Max.)(5 points) |
| Sunlight Readable | N |
Why Choose US:
1. Prompt reply within 12 hours.
2. Understand inquiry in any language.
3. Products with top quality.
4. Very competitive prices.
5. 6-year experience in industrial LCD Screen replacements.
6. Distributor of famous brands Panel: Samsung, LG, Sharp, AUO, TPO, Tianma, Mitsubishi and more.
7. Fabulous after-sale service.
Here comes our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| CLAF047LC41 TXX | CPT | 4.7" | 540×960 |
| CLAG040LQ11 | CPT | 4.0" | 480×800 |
| C047SWA1-0 | IVO | 4.7" | 720×1280 |
| LC420DUJ-SGE3 | LG Display | 42" | 1920×1080 |
| HSD050BMW2-D00 | HannStar | 5.0" | 540×960 |
| C101NWWB-0 | IVO | 10.1" | 1280×800 |
| HSD035F8W2-A00 | HannStar | 3.5" | 480×854 |
| CLAG045LJ11 | CPT | 4.5" | 480×854 |
| CLAD027GJ01 00XD | CPT | 2.7" | 320×240 |
