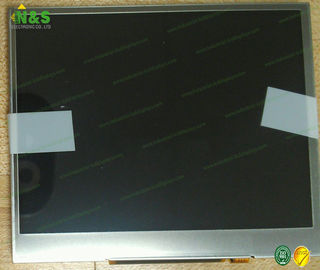

320×240 Industrial Flat Panel Display TCG035QVLPDANN-GN50 3.5 Inch Contrast Ratio 1000/1

320×240 Industrial Flat Panel Display TCG035QVLPDANN-GN50 3.5 Inch Contrast Ratio 1000/1

320×240 Industrial Flat Panel Display TCG035QVLPDANN-GN50 3.5 Inch Contrast Ratio 1000/1

Product Details:

Place of Origin: KOREA
Brand Name: Kyocera
Certification: ISO9001
Model Number: TCG035QVLPDANN-GN50

Payment & Shipping Terms:

Minimum Order Quantity: 1
Packaging Details: Antistatic bag, Bubble Bag, Foam Box and Carton Box.
Delivery Time: 1-3 Working Days
Payment Terms: Western Union, T/T, MoneyGram, T/T
Supply Ability: 500PCS/DAY
Contact Now
Detailed Product Description
Panel Type: A-Si TFT-LCD Panel Size: 3.5 Inch
Resolution: 320×240 Active Area: 70.56×52.92 Mm
Surface: Glare (Haze 0%) Frequency: 60Hz

TCG035QVLPDANN-GN50 3.5 inch, 320×240 resolution Active Area 70.56×52.92 mm Contrast Ratio 1000:1 (Typ.)



Our Promise for our LCD Panels:

You will get reply within 24 Hours and:

ΠYear warranty

ΠDay shipping

‹ Return



Feedback:

(1) Your early confirmation will be highly appreciated after receiving the item.

(2) If you are satisfied with our item, pls contact to us also for other items, actually, we are not only own professional sourcing lines for AUO, LG, Samsung, Tianma, KOE, NEC, Hitachi, Optrex and more.



Here comes our other LCD panels stock for your easy reference:

Panel Model Brand Size Resolution
F-55472GNFQJ-LW-ABN Kyocera 2.8" 128×64
F-55472GNFQJ-LG-ADN Kyocera 2.8" 128×64
F-55472GNFQJ-LB-AEN Kyocera 2.8" 128×64
F-55472GNFJ-SLW-AHN Kyocera 2.8" 128×64
F-55472GNFJ-SLW-AFN Kyocera 2.8" 128×64
F-55472GNFJ-SLW-AAN Kyocera 2.8" 128×64
F-55472GNBJ-LW-AIN Kyocera 2.8" 128×64
F-55472GNBJ-LW-AGN Kyocera 2.8" 128×64
F-55472GNBJ-LW-ACN Kyocera 2.8" 128×64

Pls contact to us for more stock information: salespm@nselectronic.com.hk



TCG035QVLPDANN-GN50 Basic Information

Panel Model TCG035QVLPDANN-GN50
Panel Brand Kyocera
Descrition a-Si TFT-LCD ,3.5 inch, 320×240
Panel Type a-Si TFT-LCD
Operating Temperature -20 ~ 70 °C
Storage Temperature -30 ~ 80 °C


TCG035QVLPDANN-GN50 Mechanical Features

Dot Resolution 320(RGB)×240 (QVGA)
Pixel Configuration RGB Vertical Stripe
Pixel Density 115 PPI
Aspect Ratio 4:3 (H:V)
Form Factor Flat Rectangle Display
Dot Pitch 0.0735×0.2205 mm (H×V)
Pixel Pitch 0.2205×0.2205 mm (H×V)
Weight 45g
Surface Glare (Haze 0%)
Active Area 70.56×52.92 mm (H×V)
Bezel Area 72.26×54.62 mm (H×V)
Outline Dimension 76.9×63.9 mm (H×V)
Outline Depth 4.9±0.3 mm
Landscape or Portrait Landscape type
Touch Panel Without


TCG035QVLPDANN-GN50 Optical Features

Display Mode TN, Normally White, Transmissive
Brightness 1000 cd/m² (Typ.)
Contrast Ratio 1000 : 1 (Typ.) (Transmissive)
Display Color 16.7M (8-bit)
Response Time 8/22 (Typ.)(Tr/Td)
Viewing Angle 80/80/80/60 (Typ.)(CR≥10) (L/R/U/D)
Viewing Direction 12 o'clock
White color Chromaticity Wx:0.305; Wy:0.330
Sunlight Readable Y


TCG035QVLPDANN-GN50 Electronics Feature

Vertical Frequency 60Hz
Reverse Scan Yes (U/D, L/R)
