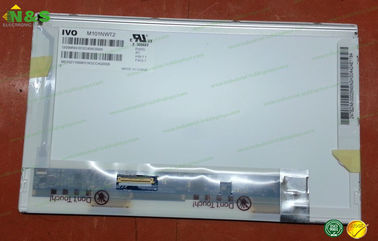

M101NWT2 R1 TFT Industrial LCD Displays IVO 10.1 Inch Active Area 222.72×125.28mm

M101NWT2 R1 TFT Industrial LCD Displays IVO 10.1 Inch Active Area 222.72×125.28mm

M101NWT2 R1 TFT Industrial LCD Displays IVO 10.1 Inch Active Area 222.72×125.28mm

Product Details:

Place of Origin: KOREA
Brand Name: IVO
Certification: ISO9001
Model Number: M101NWT2 R1

Payment & Shipping Terms:

Minimum Order Quantity: 1
Packaging Details: Antistatic bag, Bubble Bag, Foam Box and Carton Box.
Delivery Time: 1-3 Working Days
Payment Terms: Western Union, T/T, MoneyGram, T/T
Supply Ability: 500PCS/DAY
Contact Now
Detailed Product Description
Panel Type: A-Si TFT-LCD Panel Size: 10.1 Inch
Resolution: 1024×600 Outline: 235×143×5.2 Mm
Contrast Ratio: 500:1 (Typ.) Frequency: 60Hz

Normally White M101NWT2 R1 TFT LCD Module IVO 10.1 inch Active Area 222.72×125.28 mm Contrast Ratio 500:1 (Typ.)



M101NWT2 R1 Basic Information

Panel Model M101NWT2 R1
Panel Brand IVO
Descrition a-Si TFT-LCD ,10.1 inch, 1024×600
Panel Type a-Si TFT-LCD
Model Alias M101NWT2-R1
Operating Temperature 0 ~ 50 °C
Storage Temperature -20 ~ 60 °C


M101NWT2 R1 Mechanical Features

Dot Resolution 1024(RGB)×600 (WSVGA)
Pixel Configuration RGB Vertical Stripe
Pixel Density 117 PPI
Aspect Ratio 16:9 (H:V)
Form Factor Flat Rectangle Display
Dot Pitch 0.0725×0.2088 mm (H×V)
Pixel Pitch 0.2175×0.2088 mm (H×V)
Weight 190g (Max.)
Surface Glare (Haze 0%), Hard coating
Active Area 222.72×125.28 mm (H×V)
Bezel Area 226.42×128.48 mm (H×V)
Outline Dimension 235×143 mm (H×V)
Outline Depth 5.2 (Max.) mm
Shape Style Wedge (PCBA Bent, Depth ≥5.2mm)
Holes & Brackets Side mounting holes (4-M2) on left, right bezel
Landscape or Portrait Landscape type
Touch Panel Without


M101NWT2 R1 Optical Features

Display Mode TN, Normally White, Transmissive
Brightness 200 cd/m² (Typ.)
Contrast Ratio 500 : 1 (Typ.) (Transmissive)
Display Color 262K (6-bit)
Color Gamut 45% NTSC (CIE1931)
Response Time 3/5 (Typ.)(Tr/Td)
Viewing Angle 45/45/15/35 (Typ.)(CR≥10) (L/R/U/D)
Viewing Direction 6 o'clock
White color Chromaticity Wx:0.313; Wy:0.329
White Variation 1.25/1.60 (Max.)(5/13 points)
Sunlight Readable N


Shipment for the LCD Display Panels:
1. Safe & Professional package for our LCD panels.
2. We can ship to you by UPS/FEDEX/DHL/TNT and so on. Other shipping terms can also be arranged according to specific requirements.
3. We are not responsible for any accidents, delays or other issues that are the responsibility of the shipping service.
4. All our LCD panel will be tested pcs by pcs before been shipped out.

Competitive Advantage:
1. We are a leading vendor & distributor for the LCD panels for more than 6 years.
2. We got the ISO9001 quality management system certification.
3. We have our own sourcing line & agency for the hard-to-find & shortage LCD panel models.
4. We are the professional team for the LCD screen sourcing & international trade with 6-year experience.
5. Prompt delivery, we always have the LCD panels in stock. Delivery can be made in 1-3 working days.
6. 1-year warranty is offered.
7. All LCD Panel will be tested before shipment.
8. We are the vendor & distributor in LCD panel area already for 6 years. We own our professional & competitive LCD screen sourcing line.

Here comes our other LCD panels stock for your easy reference:

Panel Model Brand Size Resolution
P116NWR4 R0 IVO 11.6" 1366×768
C116NWR1 IVO 11.6" 1366×768
C050SWZ9 R1 IVO 5.0" 540×960
C050SWY2-3 IVO 4.9" 480×854
C050SWY2-1 IVO 4.9" 480×854
C045SWY2-0 IVO 4.5" 480×854
C046SWN1-0 IVO 4.6" 480×854
C028SN21-1 IVO 2.8" 240×320
C020SN91 IVO 2.0" 176×220
C054SWZ5 IVO 5.4" 540×960
