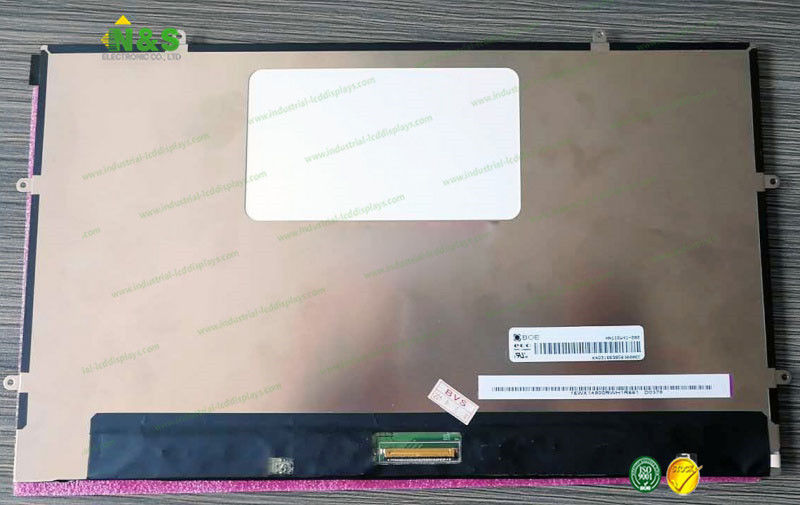

Luminance 400cd/m² Industrial LCD Displays 11.6'' HN116WX1-202 TFT Module BOE

Luminance 400cd/m² Industrial LCD Displays 11.6'' HN116WX1-202 TFT Module BOE

Luminance 400cd/m²  Industrial LCD Displays 11.6'' HN116WX1-202 TFT Module BOE

Product Details:

Place of Origin: KOREA
Brand Name: BOE
Certification: ISO9001
Model Number: HN116WX1-202

Payment & Shipping Terms:

Minimum Order Quantity: 1
Packaging Details: Antistatic bag, Bubble Bag, Foam Box and Carton Box.
Delivery Time: 1-3 Working Days
Payment Terms: Western Union, T/T, MoneyGram, T/T
Supply Ability: 500PCS/DAY
Contact Now
Detailed Product Description
Panel Type: LCM, A-Si TFT-LCD Panel Size: 11.6 Inch
Resolution: 1366×768 Luminance: 400 Cd/m² (Typ.)
Contrast Ratio: 800 : 1 (Typ.) (TM) Voltage Supply: 3.3V (Typ.)

11.6 inch HN116WX1-202 TFT LCD Module BOE with 256.125 × 144 (H×V) Active Area Luminance 400 cd/m² (Typ.)


HN116WX1-202 Information

  • anufacturer                              BOE
  • Model Name                            HN116WX1-202
  • Screen Size                             11.6 inch
  • Screen Type                            LCM, a-Si TFT-LCD
  • Pixel Number                           1366(RGB)×768 (WXGA)
  • Arrangement                            RGB Vertical Stripe
  • Active Area(mm)                      256.125 × 144 (H×V)
  • Treatment                                 Antiglare
  • Luminance                               400 cd/m² (Typ.)
  • Contrast Ratio                          800 : 1 (Typ.) (TM)
  • Viewing Angle                           85/85/85/85 (Typ.)(CR≥10)
  • Response                                 30 (Max.)(Tr+Td) ms
  • Good View at                            Symmetry
  • Work Mode                               ADS, Normally Black, Transmissive
  • Color Depth                              262K 50% (CIE1931)
  • Backlight                                   9S4P WLED , 15K hours , With LED Driver
  • Outline Shape                           Slim (PCBA Flat, Depth ≤3.2mm)
  • Refresh Rate                             60Hz
  • Touchscreen                              Without
  • Signal Type                                LVDS (1 ch, 6-bit) , Connector , 40 pins
  • Voltage Supply                           3.3V (Typ.)
  • Max. Ratings                               Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C

FAQ
Q1: What's price?
A1: We provide reasonable price and recommend suitable batteries to our customers.
Q2: What's delivery time?
A2: The delivery time is normally 1-3 working days after payment.
Q3: What's the payment?
A3: We accept T/T, Western Union, MoneyGram, Paypal
Q4: Can we visit your factory?
A4: Warmly welcome. Once we have your schedule, we will arrange
professional sales team to follow up your case.

Return and Refund:
(1) Please notify us ASAP if the LCD Displays you received is defective. Please do not raise any dispute without communication.
(2) All LCD panels must be informed before returning. Defective item must be reported and returned within our warranty period.
(3) Returned item must have original package and be in good condition if possible, pls provide us the tracking number and returning reason.

Here comes our other LCD panels stock for your easy reference:

Panel Model Brand Size Resolution
TV080WUB-NW0-3900 BOE 8.0" 1200×1920
ET058Z8B-NE0 BOE 5.8" 1280×768
BP101WX7-210 BOE 10.1" 1280×800
BF050HDE-400 BOE 5.0" 720×1280
8.0 Rearview Mirror BOE 8.0" 1600×480
BP080WX3-200 BOE 8.0" 800×1280
BP070WX6-400 BOE 7.0" 800×1280
HV490FHB-N80 BOE 49" 1920×1080
HV430FHB-N40 BOE 43" 1920×1080
TT080WXG-N11 BOE 8.0" 800×1280
TV079X0Q-N50 BOE 7.9" 768×1024
