Product Details:
|
| Panel Model: | G156HTN02.0 | Panel Type: | A-Si TFT-LCD |
|---|---|---|---|
| Panel Size: | 15.6 Inch | Resolution: | 1920×1080 |
| Contrast Ratio: | 700:1 (Typ.) | Frequency: | 60Hz |
| High Light: | industrial touch screen display,industrial lcd screen |
||

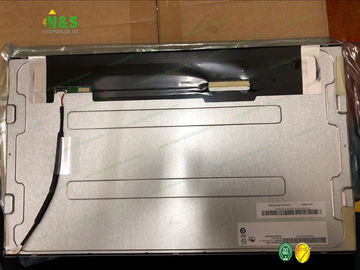

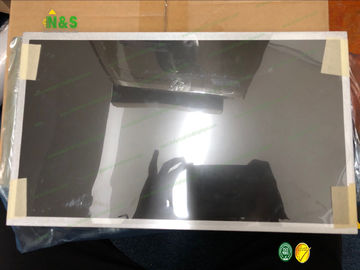

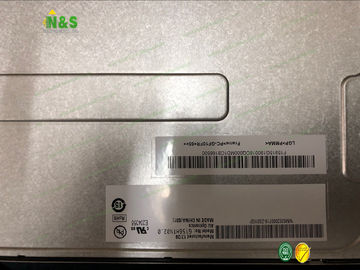

Normally White G156HTN02.0 15.6inch 1920×1080 Resolution 344.16×193.59 mm Active Area Contrast Ratio 700:1 (Typ.)
G156HTN02.0 Basic Information
| Panel Model | G156HTN02.0 |
| Panel Brand | AUO |
| Descrition | a-Si TFT-LCD ,15.6 inch, 1920×1080 |
| Panel Type | a-Si TFT-LCD |
| Operating Temperature | -10 ~ 70 °C |
| Storage Temperature | -20 ~ 70 °C |
G156HTN02.0 Mechanical Features
| Dot Resolution | 1920(RGB)×1080 (FHD) |
| Pixel Configuration | RGB Vertical Stripe |
| Pixel Density | 141 PPI |
| Aspect Ratio | 16:9 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.05975×0.17925 mm (H×V) |
| Pixel Pitch | 0.17925×0.17925 mm (H×V) |
| Weight | 0.94/1.10Kgs (Typ./Max.) |
| Surface | Antiglare, Hard coating (3H) |
| Active Area | 344.16×193.59 mm (H×V) |
| Bezel Area | 347.06×196.49 mm (H×V) |
| Outline Dimension | 363.8×215.9 mm (H×V) |
| Outline Depth | 9.3±0.5 mm |
| Holes & Brackets | Side mounting holes (4-M3) on left, right bezel |
| Landscape or Portrait | Landscape type |
| Touch Panel | Without |
G156HTN02.0 Optical Features
| Display Mode | TN, Normally White, Transmissive |
| Brightness | 400 cd/m² (Typ.) |
| Contrast Ratio | 700 : 1 (Typ.) (Transmissive) |
| Display Color | 16.7M (8-bit) |
| Color Gamut | 72% NTSC (CIE1931) |
| Response Time | 8 (Typ.)(Tr+Td) |
| Viewing Angle | 80/80/70/70 (Typ.)(CR≥10) (L/R/U/D) |
| White color Chromaticity | Wx:0.313; Wy:0.329 |
| White Variation | 1.43/1.61 (Typ./Max.)(9 points) |
| Sunlight Readable | N |
