Product Details:
|
| Panel Size: | 18.5 Inch | Resolution: | 1366×768 |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD | Active Area: | 409.8×230.4 Mm |
| Contrast Ratio: | 600:1 (Typ.) | Frequency: | 60Hz |
| High Light: | industrial touch screen display,industrial lcd screen |
||

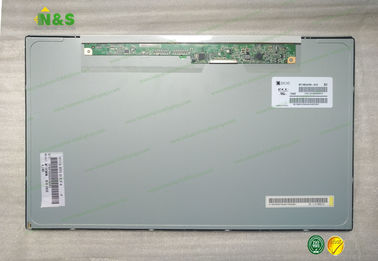

18.5 inch MT185WHM-N10 BOE Normally White with 409.8×230.4 mm Active Area Contrast Ratio 600:1 (Typ.)
Competitive Advantage:
1. We are a leading vendor & distributor for the LCD panels for more than 6 years.
2. We got the ISO9001 quality management system certification.
3. We have our own sourcing line & agency for the hard-to-find & shortage LCD panel models.
4. We are the professional team for the LCD screen sourcing & international trade with 6-year experience.
5. Prompt delivery, we always have the LCD panels in stock. Delivery can be made in 1-3 working days.
6. 1-year warranty is offered.
7. All LCD Panel will be tested before shipment.
8. We are the vendor & distributor in LCD panel area already for 6 years. We own our professional & competitive LCD screen sourcing line.
Our Service
• Long lasting product cycle for continuity thru all phases of project rollouts and servicing
• Competitive price for different brands hard disk.
• Mass stock with the better price.
• Multiple options.
• Warranty service.
• Better team to provide the before-sales, on-sale and after-sale service
• Pls send us message if any hard disk needed.
MT185WHM-N10 Basic Information
| Panel Model | MT185WHM-N10 |
| Panel Brand | BOE |
| Descrition | a-Si TFT-LCD ,18.5 inch, 1366×768 |
| Panel Type | a-Si TFT-LCD |
| Operating Temperature | 0 ~ 50 °C |
| Storage Temperature | -20 ~ 60 °C |
| Remarks | GOA Dual Gate Low Cost |
MT185WHM-N10 Mechanical Features
| Dot Resolution | 1366(RGB)×768 (WXGA) |
| Pixel Configuration | RGB Vertical Stripe |
| Pixel Density | 84 PPI |
| Aspect Ratio | 16:9 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.100×0.300 mm (H×V) |
| Pixel Pitch | 0.300×0.300 mm (H×V) |
| Weight | 1.31Kgs (Typ.) |
| Surface | Antiglare (Haze 25%), Hard coating (3H) |
| Active Area | 409.8×230.4 mm (H×V) |
| Bezel Area | 413.4×234.0 mm (H×V) |
| Outline Dimension | 430.4×254.6 mm (H×V) |
| Outline Depth | 7.7/11.4 (Typ./Max.) mm |
| Landscape or Portrait | Landscape type |
| Touch Panel | Without |
MT185WHM-N10 Optical Features
| Display Mode | TN, Normally White, Transmissive |
| Brightness | 200 cd/m² (Typ.) |
| Contrast Ratio | 600 : 1 (Typ.) (Transmissive) |
| Display Color | 16.7M (6-bit + Hi-FRC) |
| Color Gamut | 72% NTSC (CIE1931) |
| Response Time | 1.5/3.5 (Typ.)(Tr/Td) |
| Viewing Angle | 45/45/25/40 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction | 6 o'clock |
| White color Chromaticity | Wx:0.313; Wy:0.329 |
| White Variation | 1.25/1.33 (Typ./Max.)(9 points) |
| Sunlight Readable | N |
