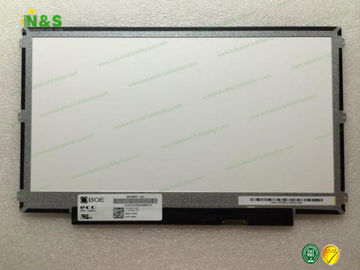

HB133WX1-201 BOE 13.3 inch 1366×768Resolution Normally White with 293.42×164.97 mm Active Area

HB133WX1-201 BOE 13.3 inch 1366×768Resolution Normally White with 293.42×164.97 mm Active Area

HB133WX1-201 BOE 13.3 inch 1366×768Resolution Normally White with 293.42×164.97 mm Active Area

Product Details:

Place of Origin: Japan
Brand Name: BOE
Certification: ISO9001
Model Number: HB133WX1-201

Payment & Shipping Terms:

Minimum Order Quantity: 1
Packaging Details: Antistatic bag, Bubble Bag, Foam Box and Carton Box.
Delivery Time: 2-3 working days after payment confirmation
Payment Terms: T/T, Western Union,paypal
Supply Ability: 100 PCS / DAY
Contact Now
Detailed Product Description
Panel Type: A-Si TFT-LCD Panel Size: 13.3 Inch
Active Area: 293.42×164.97 Mm Outline: 314.1×188.75×3.6 Mm
Surface: Antiglare Frequency: 60Hz

HB133WX1-201 BOE 13.3 inch 1366×768Resolution Normally White with 293.42×164.97 mm Active Area



HB133WX1-201 Basic Information

Panel Model HB133WX1-201
Panel Brand BOE
Descrition a-Si TFT-LCD ,13.3 inch, 1366×768
Panel Type a-Si TFT-LCD
Operating Temperature 0 ~ 50 °C
Storage Temperature -20 ~ 60 °C


Competitive Advantage:
1. Rich experience.
Having been specialized in this field for years, we have rich experience and widespread sales network around the word.

2. Great quality and high purity
Good quality is one secret for our success.

3. Safest and fastest delivery.
We have mass stock, so that we can arrange the delivery within 24hours once receiving the payment. Tracking number would be informed quickly after shipment.
4. Good after-sales service.
24/7 is available. Try our best to solve various problems customers encountered!



Shipment for the LCD Display Panels:

1. Safe & Professional package for our LCD panels.

2. We can ship to you by UPS/FEDEX/DHL/TNT and so on. Other shipping terms can also be arranged according to specific requirements.

3. We are not responsible for any accidents, delays or other issues that are the responsibility of the shipping service.

4. All our LCD panel will be tested pcs by pcs before been shipped out.



HB133WX1-201 Mechanical Features

Dot Resolution 1366(RGB)×768 (WXGA)
Pixel Configuration RGB Vertical Stripe
Pixel Density 118 PPI
Aspect Ratio 16:9 (H:V)
Form Factor Flat Rectangle Display
Dot Pitch 0.0716×0.2148 mm (H×V)
Pixel Pitch 0.2148×0.2148 mm (H×V)
Weight 295g (Max.)
Surface Antiglare
Active Area 293.42×164.97 mm (H×V)
Outline Dimension 314.1×188.75 mm (H×V)
Outline Depth 3.6 (Max.) mm
Shape Style Flat (PCBA Flat, Depth 3.4~4.0mm)
Holes & Brackets Face mounting holes (6 pcs) on left, right slugs
Landscape or Portrait Landscape type
Touch Panel Without


HB133WX1-201 Optical Features

Display Mode TN, Normally White, Transmissive
Brightness 200 cd/m² (Typ.)
Contrast Ratio 500 : 1 (Typ.) (Transmissive)
Display Color 262K (6-bit)
Color Gamut 45% NTSC (CIE1931)
Response Time 12 (Typ.)(Tr+Td)
Viewing Angle 45/45/20/40 (Typ.)(CR≥10) (L/R/U/D)
Viewing Direction 6 o'clock
White color Chromaticity Wx:0.313; Wy:0.329
White Variation 1.25/1.54 (Max.)(5/13 points)
Sunlight Readable N


Below are our other LCD panels stock for your easy reference:

Panel Model Brand Size Resolution
TV079X0S-NA0 BOE 7.9" 768×1024
BA070WV2-100 BOE 7.0" 800×480
TV070WSG-N80 BOE 7.0" 600×1024
TT070WSQ-N80 BOE 7.0" 600×1024
BV055FHM-N00 BOE 5.5" 1080×1920
BA035HV3-800 BOE 3.5" 320×480
BF050HDQ-100 BOE 5.0" 720×1280
BT045FWQ-N80 BOE 4.5" 480×854
BS050HDE-N41-6Q00 BOE 5.0" 720×1280
BV050HDE-N44 BOE 5.0" 720×1280
HV320FHB-N10 BOE 31.5" 1920×1080
TV070WSU-N10 BOE 7.0" 1024×600

We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk
