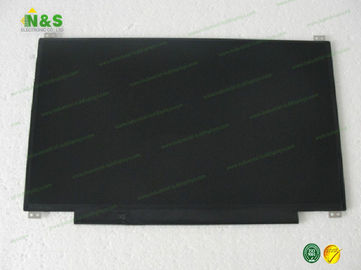

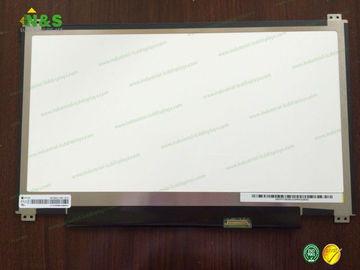

New and original Normally White HB133WX1-402 13.3 inch LCD Panel Module Outline 306.72×189.2×3 mm

New and original Normally White HB133WX1-402 13.3 inch LCD Panel Module Outline 306.72×189.2×3 mm

    • New and original Normally White HB133WX1-402 13.3 inch LCD Panel Module Outline 306.72×189.2×3 mm
    • New and original Normally White HB133WX1-402 13.3 inch LCD Panel Module Outline 306.72×189.2×3 mm
  • New and original Normally White HB133WX1-402 13.3 inch LCD Panel Module Outline 306.72×189.2×3 mm

    Product Details:

    Place of Origin: KOREA
    Brand Name: BOE
    Certification: ISO9001
    Model Number: HB133WX1-402

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Packaging Details: Antistatic bag, Bubble Bag, Foam Box and Carton Box.
    Delivery Time: 1-3 Working Days
    Payment Terms: T/T, Western Union, MoneyGram, T/T
    Supply Ability: 500PCS/DAY
    Contact Now
    Detailed Product Description
    Panel Size: 13.3 Inch Panel Type: A-Si TFT-LCD
    Resolution: 1366×768 Active Area: 293.42×164.97 Mm
    Outline: 306.72×189.2×3 Mm Surface: Antiglare, Hard Coating (3H)

    New and original Normally White HB133WX1-402 13.3 inch LCD Panel Module Outline 306.72×189.2×3 mm



    Our advantages in the LCD Screen market:
    1.Better price
    2.Fast delivery
    3.Top quality
    4.First class after - sales service
    5.No memory effect
    6.Sourcing lines & Distributors for the EOL LCD.

    Our Service
    • Long lasting product cycle for continuity thru all phases of project rollouts and servicing
    • Competitive price for different brands hard disk.
    • Mass stock with the better price.
    • Multiple options.
    • Warranty service.
    • Better team to provide the before-sales, on-sale and after-sale service
    • Pls send us message if any hard disk needed.


    HB133WX1-402 Basic Information

    Panel Model HB133WX1-402
    Panel Brand BOE
    Descrition a-Si TFT-LCD ,13.3 inch, 1366×768
    Panel Type a-Si TFT-LCD
    Operating Temperature 0 ~ 50 °C
    Storage Temperature -20 ~ 60 °C


    HB133WX1-402 Mechanical Features

    Dot Resolution 1366(RGB)×768 (WXGA)
    Pixel Configuration RGB Vertical Stripe
    Pixel Density 118 PPI
    Aspect Ratio 16:9 (H:V)
    Form Factor Flat Rectangle Display
    Dot Pitch 0.0716×0.2148 mm (H×V)
    Pixel Pitch 0.2148×0.2148 mm (H×V)
    Weight 270g (Max.)
    Surface Antiglare, Hard coating (3H)
    Active Area 293.42×164.97 mm (H×V)
    Outline Dimension 306.72×189.2 mm (H×V)
    Outline Depth 3.0 (Max.) mm
    Shape Style Slim (PCBA Flat, Depth ≤3.2mm)
    Holes & Brackets Face mounting holes (8 pcs) on up, down slugs
    Landscape or Portrait Landscape type
    Touch Panel Without


    HB133WX1-402 Optical Features

    Display Mode TN, Normally White, Transmissive
    Brightness 200 cd/m² (Typ.)
    Contrast Ratio 500 : 1 (Typ.) (Transmissive)
    Display Color 262K (6-bit)
    Color Gamut 45% NTSC (CIE1931)
    Response Time 12 (Typ.)(Tr+Td)
    Viewing Angle 45/45/20/40 (Typ.)(CR≥10) (L/R/U/D)
    Viewing Direction 6 o'clock
    White color Chromaticity Wx:0.313; Wy:0.329
    White Variation 1.25/1.60 (Max.)(5/13 points)
    Sunlight Readable N



    Here comes our other LCD panels stock for your easy reference:


    Panel Model Brand Size Resolution
    MV185WHB-N10 BOE 18.5" 1366×768
    HV430FHB-N4A BOE 43" 1920×1080
    BV055HDE-T46 BOE 5.5" 720×1280
    BV050HDE-T45-3Q00 BOE 5.0" 720×1280
    BS035DVE-N40-6Q00 BOE 3.5" 640×960
    BL060WHME301 BOE 6.0" 1440×2560
    MV215FHB-N10 BOE 21.5" 1920×1080
    AT070WSB-NW1 BOE 7.0" 1024×600
    HV320WX2-176 BOE 31.5" 1366×768
    HV320WHB-N81 BOE 31.5" 1366×768
    HV490QUB-B00 BOE 49" 3840×2160


    Pls contact to us for more stock information: salespm@nselectronic.com.hk
