Product Details:
|
| Panel Size: | 12.1 Inch | Panel Type: | A-Si TFT-LCD |
|---|---|---|---|
| Contrast Ratio: | 450:1 (Typ.) | Frequency: | 60Hz |
| Input Voltage: | 3.3V (Typ.) | ||
| High Light: | industrial touch screen display,industrial lcd screen |
||

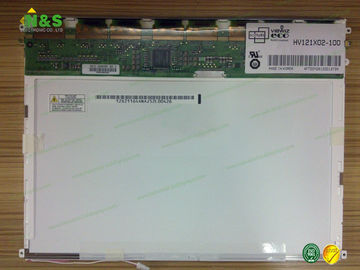

12.1 inch HV121X02-100 BOE with 245.76×184.32 mm Active Area Surface Glare (Haze 0%), Antireflection
HV121X02-100 Basic Information
| Panel Model | HV121X02-100 |
| Panel Brand | BOE HYDIS |
| Descrition | a-Si TFT-LCD ,12.1 inch, 1024×768 |
| Panel Type | a-Si TFT-LCD |
| Operating Temperature | -20 ~ 85 °C |
HV121X02-100 Mechanical Features
| Dot Resolution | 1024(RGB)×768 (XGA) |
| Pixel Configuration | RGB Vertical Stripe |
| Pixel Density | 105 PPI |
| Aspect Ratio | 4:3 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.080×0.240 mm (H×V) |
| Pixel Pitch | 0.240×0.240 mm (H×V) |
| Surface | Glare (Haze 0%), Antireflection |
| Active Area | 245.76×184.32 mm (H×V) |
| Landscape or Portrait | Landscape type |
| Touch Panel | Without |
N&S Delivery Details:
1) We are shipping this item to worldwide.
2) Our LCD panel orders processed within 1-3 working days of payment verification.
3) If you have not received the item on the Delivery Time. Please contact us. We will track the shipment and get back to your as soon as possible with a reply. Our goal is customer satisfaction.
5) We use the professional & safe package for our LCD screen replacements for you: Antistatic bag, Bubble Bag, Foam Box and Carton Box.
6) We will keep you updated for the Tracking NO. after we ship out the parcel to you.
7) Feel free to contact to us if there is any problems during the shipment process.
We Can Do for You:
1) One-to-one service with efficient & professional support;
2) Protection of your design and all your private information;
3) We could supply different hard disk for you.
4) Quality stability, can to provide certification of products;
5) Convenient payment methods: PayPal, T/T and Western Union;
6) Speedy shipment: we could arrange the shipment within 1-3 business days.
7) Quality & Service: Our priority has always been providing our clients with great quality products and superior customer service.
8) Unbeatable Prices: We continuously strive to find ways of reducing our production costs, and passing the savings to you.
HV121X02-100 Optical Features
| Display Mode | AFFS, Normally Black, Transmissive |
| Brightness | 0 cd/m² |
| Contrast Ratio | 450 : 1 (Typ.) (Transmissive) |
| Display Color | 262K (6-bit) |
| Color Gamut | 40% NTSC (CIE1931) |
| Response Time | 32 (Typ.)(Tr+Td) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction | Symmetry |
| Transmissivity | 5.91% (Typ.)(with Polarizer) |
| Sunlight Readable |
N |
