Product Details:
|
Panel Size: | 5.6 Inch | Resolution: | 1280×800 |
---|---|---|---|
Panel Type: | A-Si TFT-LCD | Active Area: | 120.96×75.6 Mm |
Contrast Ratio: | 500:1 (Typ.) | Frequency: | 60Hz |
High Light: | industrial touch screen display,industrial lcd screen |

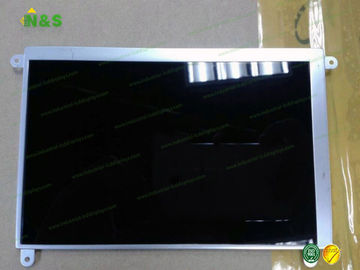

HV056WX1-100 5.6 inch BOE Normally Black with 120.96×75.6 mm Active Area Display Colors 262K (6-bit)
HV056WX1-100 Basic Information
Panel Model | HV056WX1-100 |
Panel Brand | BOE HYDIS |
Descrition | a-Si TFT-LCD ,5.6 inch, 1280×800 |
Panel Type | a-Si TFT-LCD |
Operating Temperature | 0 ~ 60 °C |
Storage Temperature | -20 ~ 70 °C |
HV056WX1-100 Mechanical Features
Dot Resolution | 1280(RGB)×800 (WXGA) |
Pixel Configuration | RGB Vertical Stripe |
Pixel Density | 268 PPI |
Aspect Ratio | 16:10 (H:V) |
Form Factor | Flat Rectangle Display |
Dot Pitch | 0.0315×0.0945 mm (H×V) |
Pixel Pitch | 0.0945×0.0945 mm (H×V) |
Weight | 61/65g (Typ.Max.) |
Active Area | 120.96×75.6 mm (H×V) |
Bezel Area | 123.96×78.60 mm (H×V) |
Outline Dimension | 131.7×87.7 mm (H×V) |
Outline Depth | 2.95/5.0 (Typ./Max.) mm |
Holes & Brackets | Face mounting holes (4 pcs) on left, right, up slugs |
Landscape or Portrait | Landscape type |
Touch Panel | Without |
Our Company Strength in LCD Screen Sourcing:
1. ISO9001 certificated, Factory Direct Supplied
2.Competitive Price and Short Lead-time
3. Professional Team with Rich Experiences in LCD screen international trade communication.
4. Small MOQ Support & Fast Response to Customers
5. Long Product Life Time
6. 1 Year warranty for our LCD screen replacements.
Our Services
1. Quick and accurate reply with best service attidue to our business
2. Pofessional advise
3. Quick PI confirmation
4. Close production follow up and production process feedback
5. Safe package
6. Get feekback from your side when items arrived,
7. 24 months warranty for items
Below are our other LCD panels stock for your easy reference:
Panel Model | Brand | Size | Resolution |
BA101WS2-100 | BOE | 10.1" | 1024×600 |
BF040WVME501 | BOE | 4.1" | 480×800 |
BP043WV2-100 | BOE | 4.3" | 480×800 |
BT028QVME101 | BOE | 2.8" | 240×320 |
BF028QVME501 | BOE | 2.8" | 240×320 |
BA039HV2-100 | BOE | 4.0" | 320×480 |
HV320WX2-506 | BOE | 31.5" | 1366×768 |
BT022QVME602 | BOE | 2.2" | 240×320 |
BT022QVME102 | BOE | 2.2" | 240×320 |
BT022QCME101 | BOE | 2.2" | 176×220 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk
HV056WX1-100 Optical Features
Display Mode | HFFS, Normally Black, Transmissive |
Brightness | 300 cd/m² (Typ.) |
Contrast Ratio | 500 : 1 (Typ.) (Transmissive) |
Display Color | 262K (6-bit) |
Response Time | 30 (Typ.)(Tr+Td) |
Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) |
Viewing Direction | Symmetry |
White color Chromaticity | Wx:0.323; Wy:0.359 |
White Variation | 1.33 (Max.)(9 points) |
Sunlight Readable | N |
