Product Details:
|
Panel Type: | A-Si TFT-LCD | Panel Size: | 10.1 Inch |
---|---|---|---|
Resolution: | 1024×600 | Outline: | 244×143×12.9 Mm |
Surface: | Antiglare, Hard Coating (3H) | Contrast Ratio: | 500:1 (Typ.) |
High Light: | industrial touch screen display,industrial lcd panel |

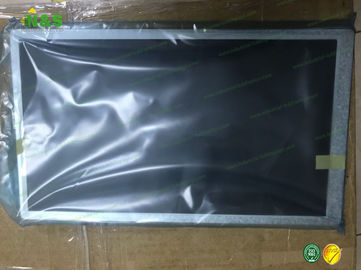

M101GWN9 R0 IVO 10.1 inch TFT LCD MODULE new and original 1024×600 resolution Normally White
M101GWN9 R0 Basic Information
Panel Model | M101GWN9 R0 |
Panel Brand | IVO |
Descrition | a-Si TFT-LCD ,10.1 inch, 1024×600 |
Panel Type | a-Si TFT-LCD |
Operating Temperature | -30 ~ 85 °C |
Storage Temperature | -30 ~ 85 °C |
M101GWN9 R0 Mechanical Features
Dot Resolution | 1024(RGB)×600 (WSVGA) |
Pixel Configuration | RGB Vertical Stripe |
Pixel Density | 117 PPI |
Aspect Ratio | 16:9 (H:V) |
Form Factor | Flat Rectangle Display |
Dot Pitch | 0.0725×0.2088 mm (H×V) |
Pixel Pitch | 0.2175×0.2088 mm (H×V) |
Weight | 440/440g (Typ./Max.) |
Surface | Antiglare, Hard coating (3H) |
Active Area | 222.72×125.28 mm (H×V) |
Bezel Area | 225.72×128.28 mm (H×V) |
Outline Dimension | 244×143 mm (H×V) |
Outline Depth | 7.2/12.9 (Typ./Max.) mm |
Landscape or Portrait | Landscape type |
Touch Panel | Without |
M101GWN9 R0 Optical Features
Display Mode | TN, Normally White, Transmissive |
Brightness | 500 cd/m² (Typ.) |
Contrast Ratio | 500 : 1 (Typ.) (Transmissive) |
Display Color | 262K/16.7M (6-bit / 6-bit + Dithering) |
Color Gamut | 45% NTSC (CIE1931) |
Response Time | 16 (Typ.)(Tr+Td) |
Viewing Angle | 80/80/80/80 (Typ.)(CR≥10) (L/R/U/D) |
White color Chromaticity | Wx:0.305; Wy:0.325 |
White Variation | 1.25/1.33 (Typ./Max.)(9 points) |
Sunlight Readable | N |
