Product Details:
|
Panel Type: | A-Si TFT-LCD | Resolution: | 1024×600 |
---|---|---|---|
Surface: | Antiglare, Hard Coating (3H) | Contrast Ratio: | 800:1 (Typ.) |
Frequency: | 60Hz | Input Voltage: | 3.3V (Typ.) |
High Light: | industrial touch screen display,industrial lcd panel |

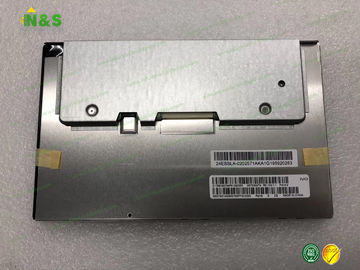

IVO M070GWT4 R0 7.0 inch Normally White 1024×600 tft lcd panel screen Surface Antiglare, Hard coating (3H)
M070GWT4 R0 Basic Information
Panel Model | M070GWT4 R0 |
Panel Brand | IVO |
Descrition | a-Si TFT-LCD ,7.0 inch, 1024×600 |
Panel Type | a-Si TFT-LCD |
Operating Temperature | -30 ~ 85 °C |
Storage Temperature | -40 ~ 95 °C |
M070GWT4 R0 Mechanical Features
Dot Resolution | 1024(RGB)×600 (WSVGA) |
Pixel Configuration | RGB Vertical Stripe |
Pixel Density | 169 PPI |
Aspect Ratio | 17:10 (H:V) |
Form Factor | Flat Rectangle Display |
Dot Pitch | 0.050×0.150 mm (H×V) |
Pixel Pitch | 0.150×0.150 mm (H×V) |
Weight | 210g (Max.) |
Surface | Antiglare, Hard coating (3H) |
Active Area | 153.6×90 mm (H×V) |
Bezel Area | 155.8×92.2 mm (H×V) |
Outline Dimension | 170×105.2 mm (H×V) |
Outline Depth | 6.4/11.2 (Typ./Max.) mm |
Holes & Brackets | Without |
Landscape or Portrait | Landscape type |
Touch Panel | Without |
M070GWT4 R0 Optical Features
Display Mode | TN, Normally White, Transmissive |
Brightness | 500 cd/m² (Typ.) |
Contrast Ratio | 800 : 1 (Typ.) (Transmissive) |
Display Color | 16.7M (8-bit) |
Color Gamut | 72% NTSC (CIE1931) |
Response Time | 16 (Typ.)(Tr+Td) |
Viewing Angle | 75/75/75/75 (Typ.)(CR≥10) (L/R/U/D) |
White color Chromaticity | Wx:0.305; Wy:0.325 |
White Variation | 1.18/1.25 (Typ./Max.)(9 points) |
Sunlight Readable | N |
Below are our other LCD panels stock for your easy reference:
Panel Model | Brand | Size | Resolution |
C050SWZ9 R1 | IVO | 5.0" | 540×960 |
C050SWY2-3 | IVO | 4.9" | 480×854 |
C050SWY2-1 | IVO | 4.9" | 480×854 |
C045SWY2-0 | IVO | 4.5" | 480×854 |
C046SWN1-0 | IVO | 4.6" | 480×854 |
C028SN21-1 | IVO | 2.8" | 240×320 |
C020SN91 | IVO | 2.0" | 176×220 |
C054SWZ5 | IVO | 5.4" | 540×960 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk
N&S Delivery Details:
1) We are shipping this item to worldwide.
2) Our LCD panel orders processed within 1-3 working days of payment verification.
3) If you have not received the item on the Delivery Time. Please contact us. We will track the shipment and get back to your as soon as possible with a reply. Our goal is customer satisfaction.

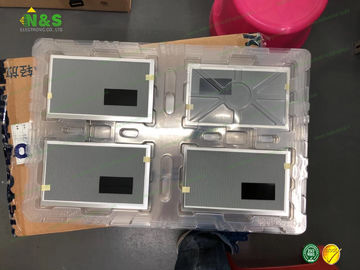

5) We use the professional & safe package for our LCD screen replacements for you: Antistatic bag, Bubble Bag, Foam Box and Carton Box.
