Product Details:
|
Panel Type: | LTPS TFT-LCD | Active Area: | 192×120 Mm |
---|---|---|---|
Panel Size: | 8.9 Inch | Resolution: | 2560×1600 |
Frequency: | 60Hz | ||
High Light: | industrial touch screen display,industrial lcd panel |

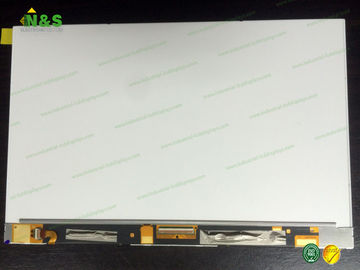

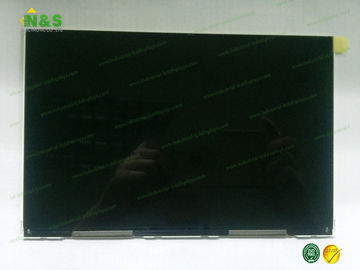

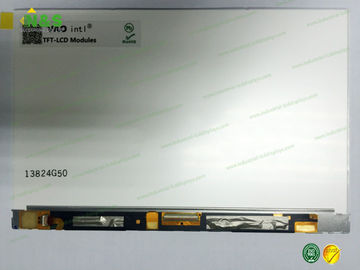

TFTMD089030 8.9 inch Active Area 192×120 m 2560×1600 high resolution Active Area 192×120 mm new and original in stock
TFTMD089030 Basic Information
Panel Model | TFTMD089030 |
Panel Brand | JDI |
Descrition | LTPS TFT-LCD ,8.9 inch, 2560×1600 |
Panel Type | LTPS TFT-LCD |
Operating Temperature | -20 ~ 60 °C |
Storage Temperature | -20 ~ 65 °C |
TFTMD089030 Mechanical Features
Dot Resolution | 2560(RGB)×1600 (WQXGA) |
Pixel Configuration | RGB Vertical Stripe |
Pixel Density | 338 PPI |
Aspect Ratio | 16:10 (H:V) |
Form Factor | Flat Rectangle Display |
Dot Pitch | 0.025×0.075 mm (H×V) |
Pixel Pitch | 0.075×0.075 mm (H×V) |
Active Area | 192×120 mm (H×V) |
Outline Dimension | 200.3×132.1 mm (H×V) |
Outline Depth | 1.82/3.43 (Typ./Max.) mm |
Holes & Brackets | Without |
Landscape or Portrait | Landscape type |
Touch Panel | Without |
TFTMD089030 Optical Features
Display Mode | IPS, Normally Black, Transmissive |
Brightness | 500 cd/m² (Typ.) |
Contrast Ratio | 1200 : 1 (Typ.) (Transmissive) |
Display Color | 16.7M (8-bit) |
Color Gamut | 72% NTSC (CIE1931) |
Viewing Angle | 80/80/80/80 (Typ.)(CR≥10) (L/R/U/D) |
Viewing Direction | Symmetry |
White color Chromaticity | Wx:0.310; Wy:0.330 |
Sunlight Readable | N |
Below are our other LCD panels stock for your easy reference:
Panel Model | Brand | Size | Resolution |
GP055GAILS0020V01 | JDI | 5.5" | 720×1280 |
DPP050A224A | JDI | 5.0" | 1080×1920 |
TPF0501008P | JDI | 5.0" | 720×1280 |
TPF0702002N | JDI | 7.0" | 1200×1920 |
LPM070W425D | JDI | 7.0" | 1200×1920 |
GP040GAIIP0020V01 | JDI | 4.0" | 540×960 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk
CPT CLAA090NA02CW Optical Features
Display Mode :TN, Normally White, Transmissive
Brightness : 300 cd/m² (Typ.)
Contrast Ratio : 500 : 1 (Typ.) (Transmissive)
Display Color : 262K/16.2M (6-bit / 6-bit + Dithering)
Color Gamut : 50% NTSC (CIE1931)
Response Time : 25 (Typ.)(Tr+Td)
Viewing Angle : 70/70/50/70 (Typ.)(CR≥10) (L/R/U/D)
Viewing Direction : 6 o'clock
White color Chromaticity : Wx:0.313; Wy:0.329
White Variation : 1.25/1.43 (Typ./Max.)(9 points)
