Product Details:
|
| Panel Brand: | JDI | Panel Type: | LTPS TFT-LCD |
|---|---|---|---|
| Panel Size: | 7.0 Inch | Resolution: | 1200×1920 |
| Outline: | 98.7×160.8×3.67 Mm | Contrast Ratio: | 1100:1 (Typ.) |
| High Light: | industrial touch screen display,industrial lcd screen |
||

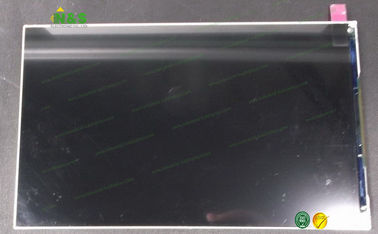

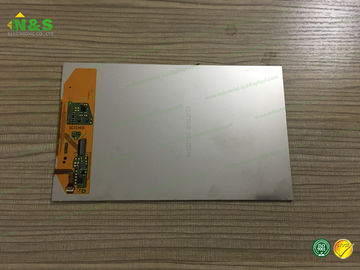

New and original Normally Black LT070ME05000 7.0 inch resolution 1200×1920 Active Area 94.5×151.2 mm
What is Our Advantage?
1. We are the professional supplier of the industrial LCD Screen Replacements, located in the biggest components center of the world.
2. We can provide the one-stop purchase service.
3. Our clients can grow their business by focusing on their sales, ware-housing and distribution while we take care of their China buying.
4. Client relationship and production management are the key factors that ensure successful China buying. Your account will be managed by our professional project managers.
5. Fast delivery.
6. Reasonable price.
Guarantee:
(1) All items will be strictly tested and shipped with safe & professional package.
(2) We have 2~6months warranty for every LCD screen panels, depend on the different LCD panel models.
(3) We will do our best to solve any possible problem for your after sale. Please contact to us.
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| GP055GAILS0020V01 | JDI | 5.5" | 720×1280 |
| DPP050A224A | JDI | 5.0" | 1080×1920 |
| TPF0501008P | JDI | 5.0" | 720×1280 |
| TPF0702002N | JDI | 7.0" | 1200×1920 |
| LPM070W425D | JDI | 7.0" | 1200×1920 |
| GP040GAIIP0020V01 | JDI | 4.0" | 540×960 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk
LT070ME05000 Basic Information
| Panel Model | LT070ME05000 |
| Panel Brand | JDI |
| Descrition | LTPS TFT-LCD ,7.0 inch, 1200×1920 |
| Panel Type | LTPS TFT-LCD |
| Operating Temperature | -10 ~ 60 °C |
| Storage Temperature | -30 ~ 70 °C |
| Remarks | for Asus Google Nexus 7 2nd 2013 |
LT070ME05000 Mechanical Features
| Dot Resolution | 1200(RGB)×1920 (WUXGA) |
| Pixel Configuration | RGB Vertical Stripe |
| Pixel Density | 322 PPI |
| Aspect Ratio | 10:16 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.02625×0.07875 mm (H×V) |
| Pixel Pitch | 0.07875×0.07875 mm (H×V) |
| Weight | 66g (Typ.) |
| Active Area | 94.5×151.2 mm (H×V) |
| Outline Dimension | 98.7×160.8 mm (H×V) |
| Outline Depth | 1.98/3.67 (Typ./Max.) mm |
| Landscape or Portrait | Portrait type |
| Touch Panel | Without |
LT070ME05000 Optical Features
| Display Mode | IPS, Normally Black, Transmissive |
| Brightness | 450 cd/m² (Typ.) |
| Contrast Ratio | 1100 : 1 (Typ.) (Transmissive) |
| Display Color | 16.7M (8-bit) |
| Color Gamut | 72% NTSC (CIE1931) |
| Viewing Angle | 80/80/80/80 (Min.)(CR≥10) (L/R/U/D) |
| Viewing Direction | Symmetry |
| White color Chromaticity | Wx:0.310; Wy:0.330 |
| White Variation | 1.25 (Typ.)(9 points) |
| Sunlight Readable | N |
