Product Details:
|
| Resolution: | 800×600 | Panel Size: | 10.4 Inch |
|---|---|---|---|
| Active Area: | 211.2×158.4 Mm | Outline: | 243×185.1 Mm |
| Contrast Ratio: | 800:1 (Typ.) | Input Voltage: | 3.3V (Typ.) |
| High Light: | hitachi lcd display,hitachi lcd screen |
||

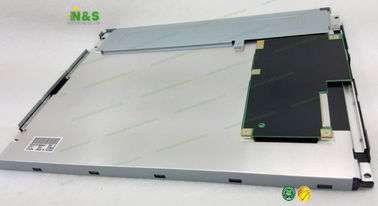

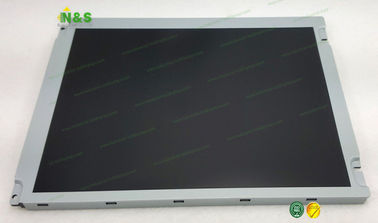

Normally Black TX26D12VM0AAA HITACHI 10.4 inch 800×600 Frequency 60Hz Active Area 211.2×158.4 mm
Our Advantage :
>>Quality Guarantee:
Our LCD Panels are 100% original and brand new!
Warranty : 12 months
You can enjoy the real panels directly from the LCD panel brand distributor.
>>Packing Guarantee:
All the products are in original package from original factory directly, and all the LCD panel packages with labels and serial number!
>>Delivery Guarantee:
We have international logistic center in HK, so we can arrange fastest and most convenient delivery for you!
>>After-Sale service
We have many years good experience on display solution.
Any question, we will reply you within 12 hours.
Feedback:
(1) Your early confirmation will be highly appreciated after receiving the item.
(2) If you are satisfied with our item, pls contact to us also for other items, actually, we are not only own professional sourcing lines for AUO, LG, Samsung, Tianma, KOE, NEC, Hitachi, Optrex and more.
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| NP055IA-03E | Innolux | 5.5" | 1080×1920 |
| CLAG045LA011 AXA | CPT | 4.5" | 480×854 |
| LC550EGY-SHM1 | LG Display | 55" | 3840×2160 |
| LC550EQK-FGK3 | LG Display | 55" | 3840×2160 |
| H466TAN01.2 | AUO | 4.7" | 720×1280 |
| C050SWZ3-1 | IVO | 5.0" | 540×960 |
| C017SN81-0 | IVO | 1.8" | 128×160 |
| N080ICE-GB1 CELL | Innolux | 8.0" | 800×1280 |
| CLAF055LA41 TXX | CPT | 5.5" | 540×960 |
| V650DJ4-QS5 | Innolux | 65" | 3840×2160 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk
TX26D12VM0AAA Basic Information
| Panel Model | TX26D12VM0AAA |
| Panel Brand | HITACHI |
| Descrition | a-Si TFT-LCD ,10.4 inch, 800×600 |
| Panel Type | a-Si TFT-LCD |
| Operating Temperature | -20 ~ 70 °C |
| Storage Temperature | -30 ~ 80 °C |
| Vibration Resistance | 2.0G (19.6 m/s²) |
TX26D12VM0AAA Mechanical Features
| Dot Resolution | 800(RGB)×600 (SVGA) |
| Pixel Configuration | RGB Vertical Stripe |
| Pixel Density | 96 PPI |
| Aspect Ratio | 4:3 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.088×0.264 mm (H×V) |
| Pixel Pitch | 0.264×0.264 mm (H×V) |
| Weight | 560g (Typ.) |
| Active Area | 211.2×158.4 mm (H×V) |
| Bezel Area | 215.8×163.0 mm (H×V) |
| Outline Dimension | 243×185.1 mm (H×V) |
| Outline Depth | 11.0 (Max.) mm |
| Holes & Brackets | Face mounting holes (2-Φ3.5, 2-R1.75) |
| Landscape or Portrait | Landscape type |
| Touch Panel | Without |
TX26D12VM0AAA Optical Features
| Display Mode | IPS Pro, Normally Black, Transmissive |
| Brightness | 450 cd/m² (Typ.) |
| Contrast Ratio | 800 : 1 (Typ.) (Transmissive) |
| Display Color | 262K/16.7M (6-bit / 6-bit + Hi-FRC) |
| Color Gamut | 60% NTSC (CIE1931) |
| Response Time | 25 (Typ.)(Tr+Td) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction | Symmetry |
| White color Chromaticity | Wx:0.350; Wy:0.370 |
| White Variation | 1.33 (Max.)(9 points) |
| Sunlight Readable | N |
