Normally Black TX31D32VM2AAA HITACHI TFT-LCD Module 12.1 inch Active Area 246×184.5 mm

Certification
China N&S ELECTRONIC CO., LIMITED certification
China N&S ELECTRONIC CO., LIMITED certification
Customer Reviews
We've come back full of excellent memories, N&S is a very good organisation. Really expert for LCDs.

—— Andy

We'd like to praise the service we received from this company who faultlessly organised our LCD panel supply line.

—— M. H. Thatcher

If I plan another LCD panel order I shan't hesitate to contact you again.

—— Alejandro

I'm Online Chat Now

Normally Black TX31D32VM2AAA HITACHI TFT-LCD Module 12.1 inch Active Area 246×184.5 mm

Normally Black TX31D32VM2AAA HITACHI TFT-LCD Module 12.1 inch Active Area 246×184.5 mm
Normally Black TX31D32VM2AAA HITACHI TFT-LCD Module 12.1 inch Active Area 246×184.5 mm

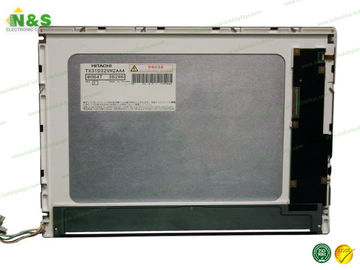

Large Image :  Normally Black TX31D32VM2AAA HITACHI TFT-LCD Module 12.1 inch Active Area 246×184.5 mm

Product Details:
Place of Origin: Japan,Korea
Brand Name: HITACHI
Certification: ISO9001
Model Number: TX31D32VM2AAA
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Packaging Details: Antistatic bag, Bubble Bag, Foam Box and Carton Box.
Delivery Time: 1-3 Working Days
Payment Terms: T/T, Western Union, MoneyGram, Paypal
Supply Ability: 100 PCS PER DAY

Normally Black TX31D32VM2AAA HITACHI TFT-LCD Module 12.1 inch Active Area 246×184.5 mm

Description
Panel Type: A-Si TFT-LCD Display Mode: TN, Normally White, Transmissive
Active Area: 246×184.5 Mm Outline: 280×210×13.5 Mm
Descrition: A-Si TFT-LCD ,12.1 Inch, 800×600 Contrast Ratio: 500:1 (Typ.)
Surface: Hard Coating (3H)
High Light:

hitachi lcd display

,

monochrome lcd panel

Normally Black TX31D32VM2AAA HITACHI TFT-LCD Module 12.1 inch, 800×600 Active Area 246×184.5 mm



Why do you choose us?

• Quick response to clients' enquiries within 24hrs.

• More than 6-yearexperience in LCD screen field and professional team communication team.

•Value quality and long-term cooperation to reach win-win relationship.



Packing & Delivery for our LCD Screen Panel Replacements:

1. Anti-static Bag Packing.

2. Anti-Shock Bubble Bag Packing

3. Foam and Hard Carton Packing

4. Picked up by forward and delivered by express services.



TX31D32VM2AAA Basic Information

Panel Model TX31D32VM2AAA
Panel Brand HITACHI
Descrition a-Si TFT-LCD ,12.1 inch, 800×600
Panel Type a-Si TFT-LCD
Operating Temperature 0 ~ 70 °C
Storage Temperature -20 ~ 70 °C
Vibration Resistance 2.0G (19.6 m/s²)


TX31D32VM2AAA Mechanical Features

Dot Resolution 800(RGB)×600 (SVGA)
Pixel Configuration RGB Vertical Stripe
Pixel Density 82 PPI
Aspect Ratio 4:3 (H:V)
Form Factor Flat Rectangle Display
Dot Pitch 0.1025×0.3075 mm (H×V)
Pixel Pitch 0.3075×0.3075 mm (H×V)
Weight 700g (Typ.)
Surface Hard coating (3H)
Active Area 246×184.5 mm (H×V)
Bezel Area 250.0×188.5 mm (H×V)
Outline Dimension 280×210 mm (H×V)
Outline Depth 13.0 (Typ.) mm
Holes & Brackets Face mounting holes (4-R1.75) on left, right bezel
Landscape or Portrait Landscape type
Touch Panel Without


TX31D32VM2AAA Optical Features

Display Mode TN, Normally White, Transmissive
Brightness 400 cd/m² (Typ.)
Contrast Ratio 500 : 1 (Typ.) (Transmissive)
Display Color 16.7M (8-bit)
Response Time 15/10 (Typ.)(Tr/Td)
Viewing Angle 65/65/55/65 (Typ.)(CR≥10) (L/R/U/D)
White color Chromaticity Wx:0.320; Wy:0.320
White Variation 1.67 (Max.)(5 points)
Sunlight Readable N


Here comes our other LCD panels stock for your easy reference:

Panel Model Brand Size Resolution
LSC320HN06 Samsung 31.5" 1920×1080
BF050FHME101 BOE 5.0" 1080×1920
BS055FHG-N41-6900 BOE 5.5" 1080×1920
CLAF050LQ41 TXX CPT 5.0" 540×960
HSD101PUW1-A00-0299 HannStar 10.1" 1920×1200
ST3151A04-9 CSOT 31.5" 1366×768
TM046XYHP02 Tianma 4.7" 540×960
C035SN72-0 IVO 3.5" 320×480
BF039WVE-800 BOE 3.9" 480×800
