Product Details:
|
| Panel Type: | FSTN-LCD | Panel Size: | 5.1 Inch |
|---|---|---|---|
| Resolution: | 240×128 | Outline: | 159.4×101×11 Mm |
| Lamp Type: | 1 Pcs CCFL Without Driver | ||
| High Light: | monochrome lcd panel,hitachi lcd screen |
||

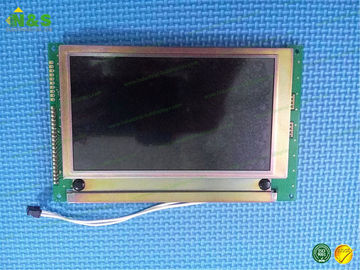

Normally White LMG7400PLFC TFT LCD Module 5.1 inch 240×128 Outline 159.4×101×11 mm Frequency 75Hz
LMG7400PLFC Basic Information
| Panel Model | LMG7400PLFC |
| Panel Brand | HITACHI |
| Descrition | FSTN-LCD ,5.1 inch, 240×128 |
| Panel Type | FSTN-LCD |
| Operating Temperature | 0 ~ 40 °C |
| Storage Temperature | -20 ~ 60 °C |
| Vibration Resistance | 2.0G (19.6 m/s²) |
LMG7400PLFC Mechanical Features
| Dot Resolution | 240×128 |
| Pixel Configuration | Rectangle |
| Pixel Density | 50 PPI |
| Aspect Ratio | 17:9 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.50×0.50 mm (H×V) |
| Pixel Pitch | 0.50×0.50 mm (H×V) |
| Weight | 180g |
| Surface | Antiglare, Hard coating (3H) |
| Active Area | 119.97×63.97 mm (H×V) |
| Bezel Area | 124.0×70.0 mm (H×V) |
| Outline Dimension | 159.4×101 mm (H×V) |
| Outline Depth | 11.0 (Max.) mm |
| Holes & Brackets | Face mounting holes (4-Φ3.0) |
| Landscape or Portrait | Landscape type |
| Touch Panel | Without |
LMG7400PLFC Optical Features
| Display Mode | STN, Black/White (Negative), Transmissive |
| Brightness | 90 cd/m² (Typ.) |
| Contrast Ratio | 18 : 1 (Typ.) (Transmissive) |
| Display Color | Monochrome () |
| Response Time | 160/110 (Typ.)(Tr/Td) |
| Viewing Angle | 40 (Typ.)(CR≥2, Φ2-Φ1) (L/R/U/D) |
| Viewing Direction | 6 o'clock |
| Sunlight Readable | N |
Shipment for the LCD Display Panels:
1. Safe & Professional package for our LCD panels.
2. We can ship to you by UPS/FEDEX/DHL/TNT and so on. Other shipping terms can also be arranged according to specific requirements.
3. We are not responsible for any accidents, delays or other issues that are the responsibility of the shipping service.
4. All our LCD panel will be tested pcs by pcs before been shipped out.
Competitive Advantage:
1. We are a leading vendor & distributor for the LCD panels for more than 6 years.
2. We got the ISO9001 quality management system certification.
3. We have our own sourcing line & agency for the hard-to-find & shortage LCD panel models.
4. We are the professional team for the LCD screen sourcing & international trade with 6-year experience.
5. Prompt delivery, we always have the LCD panels in stock. Delivery can be made in 1-3 working days.
6. 1-year warranty is offered.
7. All LCD Panel will be tested before shipment.
8. We are the vendor & distributor in LCD panel area already for 6 years. We own our professional & competitive LCD screen sourcing line.
Here comes our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| BF039WVQ-100 | BOE | 3.9" | 480×800 |
| ST3151A04-8 | CSOT | 31.5" | 1366×768 |
| TM060XYSP01 | Tianma | 6.0" | 540×960 |
| LH430WV6-SH01 | LG Display | 4.3" | 480×800 |
| LH500WX2-SH05 | LG Display | 5.0" | 720×1280 |
| HV480FH2-600 | BOE | 48" | 1920×1080 |
| LC320HU1A | PANDA | 31.5" | 2560×1440 |
| P097ZCA-1Z2 | Innolux | 9.7" | 1024×768 |
| H466TAN03.0 | AUO | 4.6" | 720×1280 |
