Product Details:
|
| Panel Size: | 4.7 Inch | Resolution: | 320×240 |
|---|---|---|---|
| Panel Type: | STN-LCD | Active Area: | 95.97×71.97 Mm |
| Outline: | 139×120 Mm | Contrast Ratio: | 4:1 (Typ.) |
| High Light: | industrial touch screen display,industrial lcd panel |
||

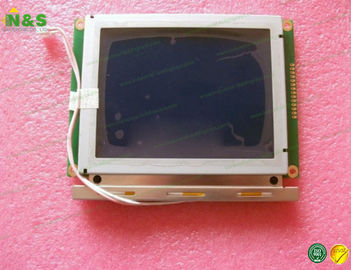

DMF50081NB-FW 4.7 inch, 320×240 Active Area 95.97×71.97 mm Outline 139×120 mm Outline 139×120 mm
DMF50081NB-FW Basic Information
| Panel Model | DMF50081NB-FW |
| Panel Brand | OPTREX |
| Descrition | STN-LCD ,4.7 inch, 320×240 |
| Panel Type | STN-LCD |
| Operating Temperature | 0 ~ 50 °C |
| Storage Temperature | -20 ~ 60 °C |
DMF50081NB-FW Mechanical Features
| Dot Resolution | 320×240 (QVGA) |
| Pixel Configuration | Rectangle |
| Pixel Density | 84 PPI |
| Aspect Ratio | 4:3 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.300×0.300 mm (H×V) |
| Pixel Pitch | 0.300×0.300 mm (H×V) |
| Active Area | 95.97×71.97 mm (H×V) |
| Bezel Area | 103.0×79.0 mm (H×V) |
| Outline Dimension | 139×120 mm (H×V) |
| Outline Depth | 13.2 (Max.) mm |
| Landscape or Portrait | Landscape type |
| Touch Panel | Without |
DMF50081NB-FW Optical Features
| Display Mode | STN, Transmissive |
| Contrast Ratio | 4 : 1 (Typ.) (Transmissive) |
| Display Color | Monochrome () |
| Response Time | 100/360 (Typ.)(Tr/Td) |
| Sunlight Readable | N |
DMF50081NB-FW Backlight System
| Lamp Position | Edge light type |
| Lamp Type | CCFL |
| Lamp Amount | 1 pcs |
| Lamp Current | 4/6mA (Min./Max.) |
| Interface Type | Connector |
| Lamp Driver Board | No |
Shipment for the LCD Display Panels:
1. Safe & Professional package for our LCD panels.
2. We can ship to you by UPS/FEDEX/DHL/TNT and so on. Other shipping terms can also be arranged according to specific requirements.
3. We are not responsible for any accidents, delays or other issues that are the responsibility of the shipping service.
4. All our LCD panel will be tested pcs by pcs before been shipped out.
