Product Details:
|
| Panel Type: | A-Si TFT-LCD | Panel Size: | 55 Inch |
|---|---|---|---|
| Resolution: | 1920×1080 | Active Area: | 1209.6×680.4 Mm |
| Outline: | 1232×708.9×28.6 Mm | Contrast Ratio: | 1100:1 (Typ.) |
| Frequency: | 60Hz | Input Voltage: | 12.0V (Typ.) |
| High Light: | lg lcd display,lg replacement screen |
||

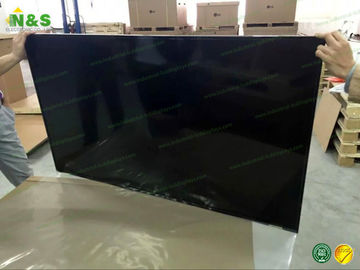

New and origianl LD550EUE-FHB1 55.0 inch 1920×1080 Active Area 1209.6×680.4 mm Frequency 60Hz
LD550EUE-FHB1 Basic Information
| Panel Model | LD550EUE-FHB1 |
| Panel Brand | LG Display |
| Descrition | a-Si TFT-LCD ,55 inch, 1920×1080 |
| Panel Type | a-Si TFT-LCD |
| Model Alias | LD550EUE (FH)(B1) |
| Operating Temperature | 0 ~ 50 °C |
| Storage Temperature | -20 ~ 60 °C |
| Remarks | Integrated “Black” bezel |
LD550EUE-FHB1 Mechanical Features
| Dot Resolution | 1920(RGB)×1080 (FHD) |
| Pixel Configuration | RGB Vertical Stripe |
| Pixel Density | 40 PPI |
| Aspect Ratio | 16:9 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.210×0.630 mm (H×V) |
| Pixel Pitch | 0.630×0.630 mm (H×V) |
| Weight | 13.0/13.7Kgs (Typ./Max.) |
| Surface | Antiglare (Haze 1%), Hard coating (3H) |
| Active Area | 1209.6×680.4 mm (H×V) |
| Bezel Area | 1214.2×685.0 mm (H×V) |
| Outline Dimension | 1232×708.9 mm (H×V) |
| Outline Depth | 17.0/28.6 (Typ./Max.) mm |
| Landscape or Portrait | Landscape / Portrait |
| Touch Panel | Without |
LD550EUE-FHB1 Optical Features
| Display Mode | S-IPS, Normally Black, Transmissive |
| Brightness | 450 cd/m² (Typ.) |
| Contrast Ratio | 1100 : 1 (Typ.) (Transmissive) |
| Display Color | 16.7M (8-bit) |
| Color Gamut | 68% NTSC (CIE1931) |
| Response Time | 12 (Typ.)(G to G) |
| Viewing Angle | 89/89/89/89 (Min.)(CR≥10) (L/R/U/D) |
| Viewing Direction | Symmetry |
| White color Chromaticity | Wx:0.281; Wy:0.288 |
| White Variation | 1.54 (Max.)(9 points) |
| Sunlight Readable | N |
